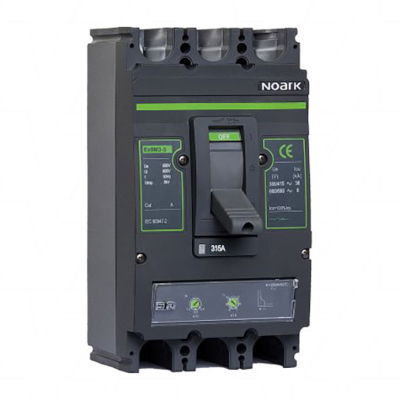

Noak N852722 MCCB EX9MD3B 315A 750V 3 Pole DC Circ Breaker

Noark N26025 MCCB EX9MD3B 315A 750V 3 Pole DC Circuit Breaker, N852722-3P-MCCB 315A/750VDC

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD3B TM DC315 3P
Poles 3 (250VDC per pole)
Current Rating (A) 315A
Voltage (Max.) 750VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 3
Frame Rating 400A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

Noark MCCB’s are adjustable:

mccb adj icon If the above product is out of stock, you can use the 400A rated N852724 model with the pot switch adjusted to 0.8 to still achieve a 320A rating.

View the Noark MCCB range with all adjustment ratings, or review the Noark MCCB Product Brochure
N20306 TCE21 3P8734 thumb View the suitable Terminal Protector/Shield

Compatible Products:

LabelData
Compatible With:
Suitable For:

$1,257.42$1,093.41 Inc GST+ GST

On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.
