Noark MCCB Current Adjustment

noark brand banner

Noark’s DC Moulded Case Circuit Breakers Ex9MD Thermo-magnetic (TM) mccb adj iconare intended mainly for photovoltaic applications. Testing according to IEC / EN 60947-2 standards ensures functionalities and reliability for wide variety of applications including isolation.

The MCCB have breaking capacities from 25kA up to extreme 100kA. The high rated impulse-withstand voltage (Uimp) makes them suitable even in systems with occurrences of transient overvoltage waves of high intensity, such as in heavy industry.

You can set the MCCB to your required current rating: 0.7 = 70%, 0.8 = 80%, 0.9 = 90%, 1.0 = 100% of Nominal.

2 Pole Models:

Part number DescriptionRated 100% (A)90% (A)80% (A)70% (A)Range
N852894Noark Ex9MD1B TM DC80A 2P 500V DC MCCB8072645656 - 80A
N852895Noark Ex9MD1B TM DC100A 2P 500V DC MCCB10090807070 - 100A
N852896Noark Ex9MD1B TM DC125A 2P 500V DC MCCB1251131008888 - 125A
N852899Noark Ex9MD2B TM DC160A 2P 500V DC MCCB160144128112112 - 160A
N852900Noark Ex9MD2B TM DC180A 2P 500V DC MCCB180162144126126 - 180A
N852901Noark Ex9MD2B TM DC200A 2P 500V DC MCCB200180160140140 - 200A
N852902Noark Ex9MD2B TM DC250A 2P 500V DC MCCB250225200175175 - 250A

3 Pole Models:

Part numberDescriptionRated 100% (A)90% (A)80% (A)70% (A)Range
N852722Noark Ex9MD3B TM DC315 3P 750V DC MCCB315284252221221 - 315A
N852724Noark Ex9MD3B TM DC400 3P 750V DC MCCB400360320280280 - 400 A
N852762Noark Ex9MD4B TM DC500 3P 750V DC MCCB500450400350350 - 500 A
N852763Noark Ex9MD4B TM DC630 3P 750V DC MCCB630567504441441 - 630 A
N852792Noark Ex9MD5B TM DC700 3P 750V DC MCCB700630560490490 - 700 A
N852793Noark Ex9MD5B TM DC800 3P 750V DC MCCB800720640560560 - 800 A

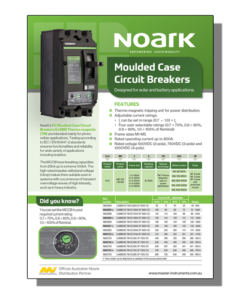

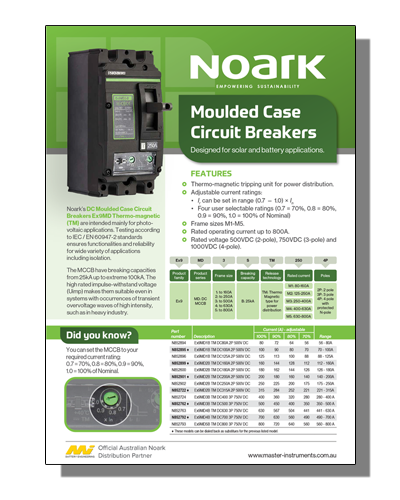

noark mccb info sheet a4 th500 Review the Noark MCCB Information Brochure for more information
