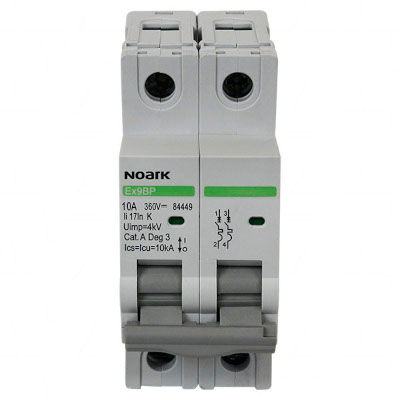

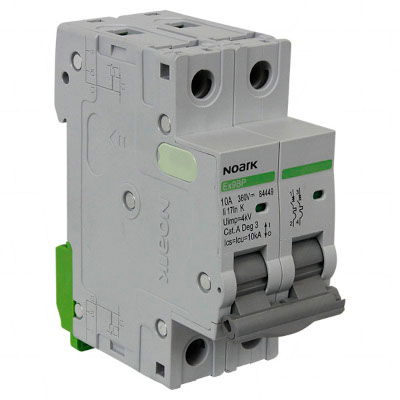

Noark N84449 MCB EX9BP-N 10A 360V 2 Pole DC Circuit Breaker

Noark N84449 MCB EX9BP-N 10A 360V 2 Pole DC Circuit Breaker, N84449-2P-MCB 10A/360VDC

Noark Miniature 360V DC Circuit Breakers (Non-polarised)

Noark DC miniature circuit breakers are non-polarised and suitable for short-circuit and overload protection of general direct current applications up to 10 A, in solar, automation, control, telecommunications, and many other DC circuit applications.

Specifications

Article Code 10000146
Noark Series Ex9BP-N2P K 10A 360VDC
Poles 2 (180VDC per pole)
Current Rating (A) 10A
Voltage (Max.) 360VDC
Voltage (Min.) 12VDC
Rated Breaking Capacity 6kA
Curve Type K
Rated Insulation Voltage (VDC) Ui 1000VDC
Terminal Capacity 35 mm²
Terminal Torque (Nm) 2-3.5Nm
Mounting 35mm Din Rail
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2, SAA101238EA

For more information review Miniature Circuit Breakers Ex9BN as well as the Noark EXB Manual.

Information on suitable enclosures to come.

Compatible Products:

LabelData
Compatible With:
Suitable For:

$51.35$44.65 Inc GST+ GST

On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:N84449-2P-MCB 10A/360VDC
Technology:
Information Link: N84449-2P-MCB 10A/360VDC.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Noark Inverter
Original Brand:Noark
Size:10A
Voltage:360V
Capacity:10A
Wattage:
Cell Profile:
Termination:
Weight:240g
Length:7.4 cm
Width/Diameter:3.6 cm
Height:8.9 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
