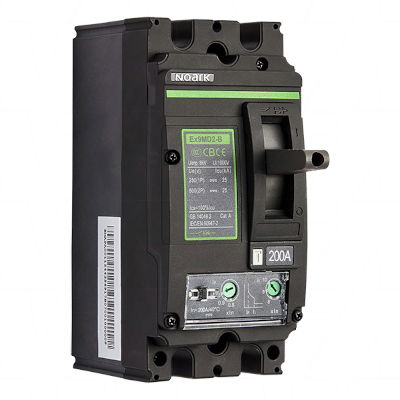

Noark N852901 MCCB EX9MD2B 200A 500V 2 Pole DC Circ Breaker

Noark N852901 MCCB EX9MD2B 200A 500V 2 Pole DC Circuit Breaker, N852901-2P-MCCB 200A/500VDC

Replacement product for discontinued N28903-2P-MCCB 200A/500VDC

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD2B TM DC200 2P
Poles 2 (250VDC per pole)
Current Rating (A) 200A
Voltage (Max.) 500VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 2
Frame Rating 250A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

Noark MCCB’s are adjustable:

mccb adj icon If the above product is out of stock, you can use the 250A rated N852902 model with the pot switch adjusted to 0.8 to still achieve the 200A rating.

View the Noark MCCB range with all adjustment ratings, or review the Noark MCCB Product Brochure
N20306 TCE21 3P8734 thumb View the suitable Terminal Protector/Shield

Compatible Products:

LabelData
Compatible With:
Suitable For:

$567.77$493.71 Inc GST+ GST

On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:N852901-2P-MCCB 200A/500VDC
Technology:
Information Link: N852901-2P-MCCB 200A/500VDC.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Noark Inverter
Original Brand:Noark
Size:200A
Voltage:500V
Capacity:200A
Wattage:
Cell Profile:
Termination:
Weight:1.2
Length:9.65 cm
Width/Diameter:7 cm
Height:15.7 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
