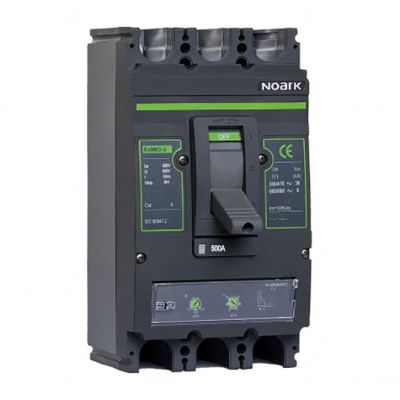

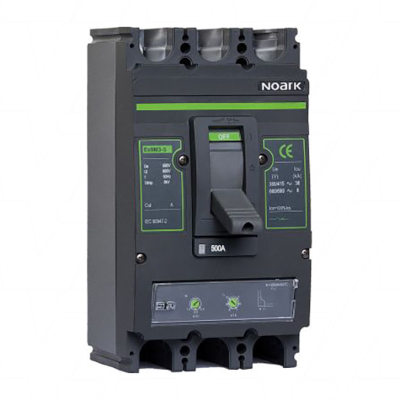

Noark N852762 MCCB EX9MD4B 500A 750V 3 Pole DC Circ Breaker

Noark N852762 MCCB EX9MD4B 500A 750V 3 Pole DC Circuit Breaker, N852762-3P-MCCB 500A/750VDC

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD4B TM DC500 3P
Poles 3 (250VDC per pole)
Current Rating (A) 500A
Voltage (Max.) 750VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 4
Frame Rating 630A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

Noark MCCB’s are adjustable:

mccb adj icon If the above product is out of stock, you can use the 630A rated N852763 model with the pot switch adjusted to 0.8 to still achieve a 504A rating.

View the Noark MCCB range with all adjustment ratings, or review the Noark MCCB Product Brochure
N20306 TCE21 3P8734 thumb View the suitable Terminal Protector/Shield

Compatible Products:

LabelData
Compatible With:
Suitable For:

$2,460.47$2,139.54 Inc GST+ GST

On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:N852762-3P-MCCB 500A/750VDC
Technology:
Information Link: N852762-3P-MCCB 500A/750VDC.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Noark Inverter
Original Brand:Noark
Size:500A
Voltage:750V
Capacity:500A
Wattage:
Cell Profile:
Termination:
Weight:
Length:
Width/Diameter:
Height:
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
