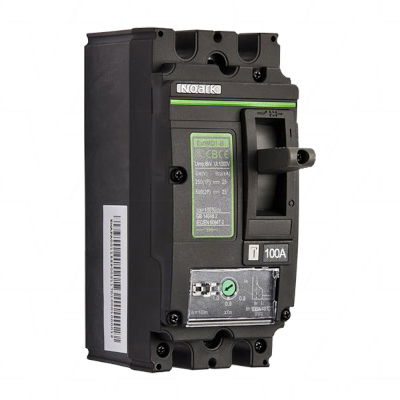

Noark N852895 MCCB EX9MD1B 100A 500V 2 Pole DC Circ Breaker

Noark N852895 MCCB EX9MD1B 100A 500V 2 Pole DC Circ Breaker, N852895-2P-MCCB 100A/500VDC

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD1B TM DC100 2P
Poles 2 (250VDC per pole)
Current Rating (A) 100A
Voltage (Max.) 500VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 2
Frame Rating 250A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

Noark MCCB’s are adjustable:

mccb adj icon If the above product is out of stock, you can use the 125A rated N852896 model with the pot switch adjusted to 0.8 to still achieve the 100A rating.

View the Noark MCCB range with all adjustment ratings, or review the Noark MCCB Product Brochure
N20306 TCE21 3P8734 thumb View the suitable Terminal Protector/Shield

Compatible Products:

LabelData
Compatible With:
Suitable For:

$327.39$284.69 Inc GST+ GST

On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:N852895-2P-MCCB 100A/500VDC
Technology:
Information Link: N852895-2P-MCCB 100A/500VDC.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Noark Inverter
Original Brand:Noark
Size:100A
Voltage:500V
Capacity:100A
Wattage:
Cell Profile:
Termination:
Weight:
Length:
Width/Diameter:
Height:
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
