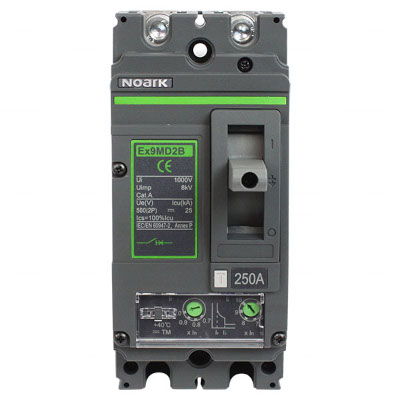

N852902 MCCB EX9MD2B 250A 500V 2 Pole DC Circ Breaker

N852902 MCCB EX9MD2B 250A 500V 2 Pole DC Circuit Breaker, Noark N852902-2P-MCCB 250A/500VDC

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD2B TM DC250 2P
Poles 2 (250VDC per pole)
Current Rating (A) 250A
Voltage (Max.) 500VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 2
Frame Rating 250A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

Noark MCCB’s are adjustable:

mccb adj icon This product can be adjusted down to lower currents via the pot switch

View the Noark MCCB range with all adjustment ratings, or review the Noark MCCB Product Brochure

N20306 TCE21 3P8734 thumb View the suitable Terminal Protector/Shield

Compatible Products:

LabelData
Compatible With:
Suitable For:

$567.77$493.71 Inc GST+ GST

On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:N852902-2P-MCCB 250A/500VDC
Technology:
Information Link: N852902-2P-MCCB 250A/500VDC.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Noark Inverter
Original Brand:Noark
Size:200A
Voltage:500V
Capacity:200A
Wattage:
Cell Profile:
Termination:
Weight:1.2
Length:9.65 cm
Width/Diameter:7 cm
Height:15.7 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
