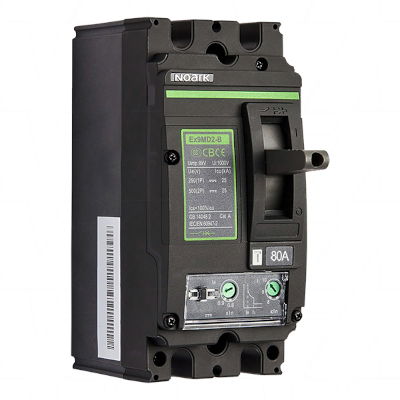

Noark N852894 MCCB EX9MD1B 80A 500V 2 Pole DC Circuit Breaker

N852894 MCCB EX9MD1B 80A 500V 2 Pole DC Circuit Breaker, N852894-2P-MCCB 80A/500VDC

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases.

Specifications

Noark Series EX9MD1B TM DC80 2P
Poles 2 (250VDC per pole)
Current Rating (A) 80A
Voltage (Max.) 500VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 1
Frame Rating 250A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

Noark MCCB’s are adjustable:

mccb adj icon If the above product is out of stock, you can use the 100A rated N852895 model with the pot switch adjusted to 0.8 to still achieve the 80A rating.

Click here to see the Noark MCCB range with all adjustment ratings, or review the Noark MCCB Product Brochure for more information.
N20306 TCE21 3P8734 thumb View the suitable Terminal Protector/Shield

Compatible Products:

LabelData
Compatible With:
Suitable For:

$344.49$299.56 Inc GST+ GST

On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.
