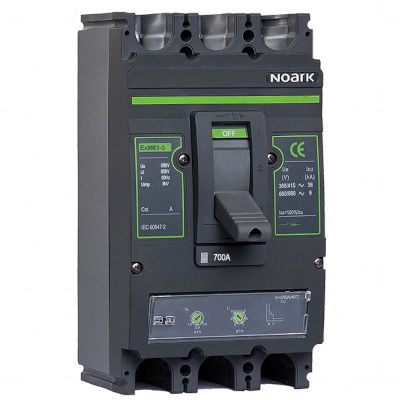

N852792 MCCB EX9MD5B 700A 750V 3 Pole DC Circuit Breaker, N852792-3P-MCCB 700A/750VDC
Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)
The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.
Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases.
Specifications
Noark Series | EX9MD5B TM DC700 3P |
---|---|
Poles | 3 (250VDC per pole) |
Current Rating (A) | 700A |
Voltage (Max.) | 750VDC |
Rated Insulation Voltage (VDC) Ui | 1000VDC |
Rated Breaking Capacity | 25kA |
Release Technology | Thermo Magnetic |
Frame Size | 5 |
Frame Rating | 630A |
IP Rating (All sides/terminals) | IP40 / 20 |
Standards | IEC/EN/AS60947-2 |
Noark MCCB’s are adjustable:
If the above product is out of stock, you can use the 125A rated N852793Â model with the pot switch adjusted to 0.8 to still achieve the 100A rating.
View the Noark MCCB range with all adjustment ratings, or review the Noark MCCB Product Brochure |
|
View the suitable Terminal Protector/Shield |
