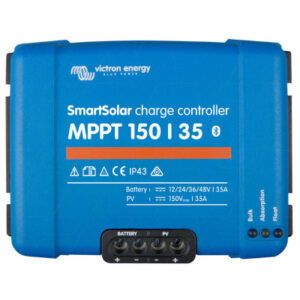

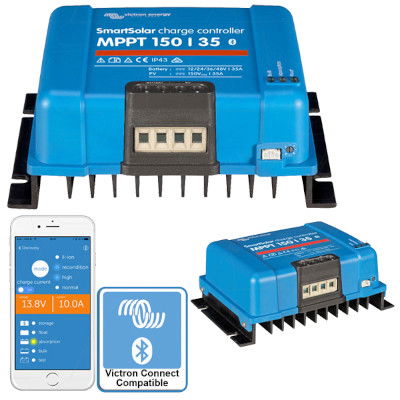

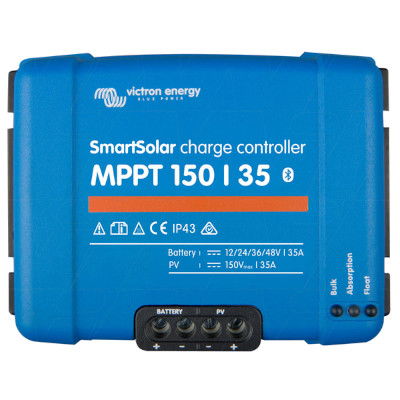

VE SmartSolar 12V/24V/36V/48V 35A Solar C/C MPPT SCC115035210
Victron Energy SmartSolar 12V/24V/36V/48V 35A Solar Charge Controller MPPT Type SCC115035210, SmartSolar MPPT 150/35
SmartSolar MPPT 150/35 solar charge controller from Victron Energy with:
- 12V/24V/36V/48V auto select battery voltage *Software tool required for 36V
- 35A rated charge current
- 500W @ 12V, 1000W @ 24V, 1500W @ 36V, 2000W @ 48V maximum PV power
- Automatic load disconnect
- 98% peak efficiency
- Reverse polarity (fuse) protection, PV reverse polarity protection, output short circuit protection, over temperature protection
Bluetooth Smart built-in:
The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.
VE.Direct:
For a wired data connection to a Color Control GX, other GX products, PC or other devices
Ultrafast Maximum Power Point Tracking (MPPT):
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30 % compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.
Advanced Maximum Power Point Detection in case of partial shading conditions:
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Outstanding conversion efficiency:
No cooling fan. Maximum efficiency exceeds 98 %. Full output current up to 40 °C (104 °F).
Flexible charge algorithm:
Fully programmable charge algorithm (see the software page on our website), and eight preprogrammed algorithms, selectable with a rotary switch (see manual for details).
Extensive electronic protection:
- Over-temperature protection and power derating when temperature is high.
- PV short circuit and PV reverse polarity protection.
- PV reverse current protection.
Internal temperature sensor:
Compensates absorption and float charge voltage for temperature.
Optional external battery voltage and temperature sensing via Bluetooth:
A Smart Battery Sense or a BMV-712 Smart Battery Monitor can be used to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.
Fully discharged battery recovery function:
Will initiate charging even if the battery has been discharged to zero volts.
Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.
This package comes supplied with:
- 12V/24V/36V/48V 35A Solar Charge Controller
- Preset charge profiles for:
- SLA
- GEL
- LITHIUM
Related Products
Battery Management & Monitoring
Battery Management & Monitoring
Battery Management & Monitoring
Lithium Iron Phosphate LiFePO4 Chargers
 Not sure what type of Solar Charge controller you need? Read more: Which solar charge controller: PWM or MPPT? |
|
 |
INSTALLATION TO NEW ZEALAND STANDARDS REQUIRED
|
 |
Multi Chemistry Profiles InstalledAll Victron MPPT’s come standard with charge profiles for multiple chemistries, including Lithium, Lead and GEL, as well as the ability to program user defined profiles. The default setting for Victron Energy MPPT’s is for Lead batteries, but charge profiles can be easily changed using the VictronConnect App. This BlueSolar MPPT will require a VE.Direct Bluetooth Smart Dongle, or a VE.Direct to USB Interface to access the VictronConnect App. |
 |
The product has a rotary switch that can be used to select eight pre-programmed battery charge algorithmsThe factory default setting is No.2 for AGM batteries. For most LiFePO4 batteries, No.7 is the preferred setting. Turning the rotary switch will override the charge settings including settings that were made with the VictronConnect app or with the display. Likewise, if charge settings are changed with the Victron Connect app or the display, this will override the rotary switch setting. |
 |
VictronConnect Compatible:
VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle, Connect directly to equipment using the VE.Direct to USB Interface (USB type-A) or VE Direct to Type C Interface (USB Type-C) cables. Find out more about VictronConnect here, or download the App via these links. For more information download the VictronConnect Manual. |
 |
 |
 |
 |
Compatible Products:
$323.99$281.73 Inc GST+ GST
