VE SmartSolar 12V/24V 30A Solar Chg/Contrl MPPT SCC110030210

Victron Energy SmartSolar 12V/24V 30A Solar Charge Controller MPPT Type SCC110030210, SmartSolar MPPT 100/30

SmartSolar MPPT 100/30 solar charge controller from Victron Energy with:

  • 12V/24V auto select battery voltage
  • 30A rated charge current
  • 440W @ 12V or 880W @ 24V maximum PV power
  • Automatic load disconnect
  • 98% peak efficiency
  • Reverse polarity (fuse) protection, output short circuit protection, over temperature protection

Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, Venus GX, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximise energy harvest by locking to the optimum MPP.

Outstanding conversion efficinecy
No cooling fan. Maximum efficiency exceeds 98%. The full output current up to 40°C (104°F).

Flexible charge algorithm
Fully programmable charge algorithm, and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection. Internal temperature sensor compensates absorption and float charge for temperature.

Real-time data display options
– Apple and Android smartphones, tablets, and other devices.
– Color Control panel.

Fully discharged battery recovery function will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function

This package comes supplied with:

  • 12V/24V 30A Solar Charge Controller
  • Preset charge profiles for:
    • SLA
    • GEL
    • LITHIUM

SmartSolar Charge Controller Manual

Related Products

PLC Robotics & CNC Batteries

Energizer Ultimate Lithium AA Battery

$5.74$4.99 Inc GST+ GST
$16.95$14.74 Inc GST+ GST

Lithium Thionyl Chloride Batteries

EVE ER14250 1/2AA Lithium Thionyl Chloride Battery

$9.59$8.34 Inc GST+ GST

Lithium Thionyl Chloride Batteries

EVE ER14505 AA Lithium Thionyl Chloride Battery

$11.96$10.40 Inc GST+ GST

Lithium Iron Phosphate LiFePO4 Chargers

VE DIN35 Adapter Large (2 pcs) ADA500180100

$36.64$31.86 Inc GST+ GST
$21.45$18.65 Inc GST+ GST

Lithium Iron Phosphate LiFePO4 Chargers

VE Direct to USB Interface ASS030530010

$56.20$48.87 Inc GST+ GST

Battery Management & Monitoring

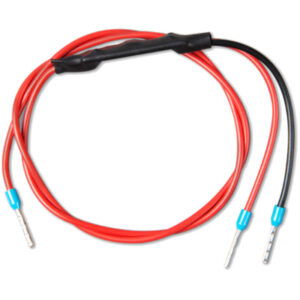

VE Inverting Remote On-Off Cable ASS030550120

$40.80$35.48 Inc GST+ GST
mppt sla lfp gel multi chem icon

Multi Chemistry Profiles Installed

All Victron MPPT’s come standard with charge profiles for multiple chemistries, including Lithium, Lead and GEL, as well as the ability to program user defined profiles.

The default setting for Victron Energy MPPT’s is for Lead batteries, but charge profiles can be easily changed using the VictronConnect App. This BlueSolar MPPT will require a VE.Direct Bluetooth Smart Dongle, or a VE.Direct to USB Interface to access the VictronConnect App.

ve rotary switch

The product has a rotary switch that can be used to select eight pre-programmed battery charge algorithms

The factory default setting is No.2 for AGM batteries. For most LiFePO4 batteries, No.7 is the preferred setting.

Turning the rotary switch will override the charge settings including settings that were made with the VictronConnect app or with the display. Likewise, if charge settings are changed with the Victron Connect app or the display, this will override the rotary switch setting.



VictronConnect Compatible:

VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle, Connect directly to equipment using the VE.Direct to USB Interface (USB type-A) or VE Direct to Type C Interface (USB Type-C) cables.

Find out more about VictronConnect here, or download the App via these links. For more information download the VictronConnect Manual.

app_store_button Google Play Store
Apple Mac store Windows Download



er Manual

Compatible Products:

LabelData
Compatible With:
Suitable For:

$219.94$191.25 Inc GST+ GST

In Stock

Delivery: 2-5 working days.
Order by 1pm for shipment today.
Click and Collect in 1 hour from Our Auckland store.

Specifications:

NameValue
Product Model:SCC110030210
Technology:
Information Link: SCC110030210.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:30A
Voltage:45627V
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:1300g
Length:7 cm
Width/Diameter:18.6 cm
Height:13 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
