VE Bluesolar 12V/24V 10A PWM LCD+USB Solar Chg/Contrl SCC010010050

Victron Energy Bluesolar 12V/24V 10A PWM LCD USB Solar Charge Controller SCC010010050, BlueSolar PWM-LCDUSB-10A

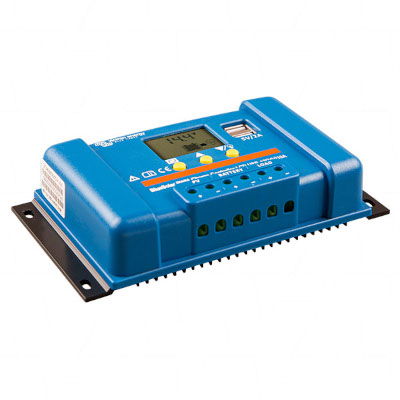

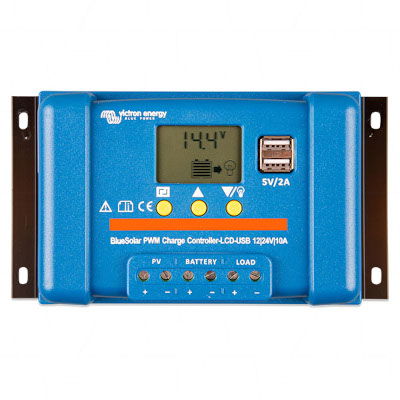

BlueSolar PWM-Type Solar Controller with LCD Screen and USB

12/24V 10A

Liquid crystal display
For status monitoring and set-up

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage.
Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.The connect and disconnect voltages are adjustable.

Day/night timing of the load output
This option allows for a pre-set ON-time after dusk.

Programmable battery charge algorithm
Preprogrammed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internal BMS only)

Two 5 Volt USB outputs
Maximum current (both outputs combined): 2A

BlueSolar PWM Charge Controller – LCD – USB Manual

mppt pwm whitepaper th500
Not sure what type of Solar Charge controller you need? Read more: Which solar charge controller: PWM or MPPT?		 mppt calculator thumb500

Access Victron Energy’s MPPT Sizing Calculator

Compatible Products:

LabelData
Compatible With:
Suitable For:

$57.43$49.94 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:SCC010010050
Technology:
Information Link: SCC010010050.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:10A
Voltage:45627V
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:150g
Length:3.6 cm
Width/Diameter:16.9 cm
Height:9.6 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
