VE BlueSolar 12V/24/48V 20A Solar Chg/Contrl MPPT SCC110020170R

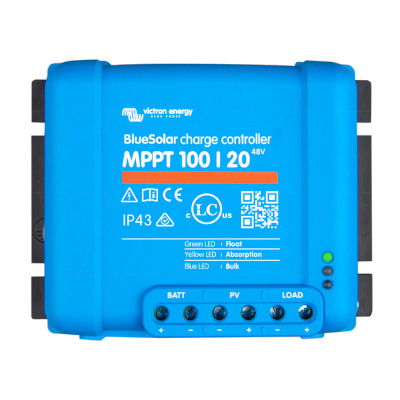

Victron Energy BlueSolar 12V/24/48V 20A Solar Charge Controller MPPT Type SCC110020170R, BlueSolar MPPT 100/20_48V

BlueSolar Charge Controllers MPPT 100/20 Up to 48V

• 12V/24/48V auto select battery voltage
• 20A rated charge current
• 290W @12V, 580W @24V or 1160W @ 48V maximum PV power
• Automatic load disconnect
• 98% peak efficiency
• Reverse polarity (fuse) protection, output short circuit protection and over temperature protection

Ultra-fastMaximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life. The load output is short circuit proof. Some loads (especially inverters) can best be connected directly to the battery, and the inverter remote control connected to the load output. A special interface cable may be needed, please see the manual.

BatteryLife: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to  recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm
See the software section on our website for details

Day/night timing and lightdimming option
See the software section on our website for details

Programming, real-time dataand history display options
-Color Control GX or other GX devices: see the Venus documents on our website.
-A smartphone or other Bluetooth-enabled device: VE.Direct Bluetooth Smart dongle needed.

This package comes supplied with:

• 12V/24/36/48V 20A Solar Charge Controller
• Preset charge profiles for:
  • SLA
  • GEL
  • LITHIUM
