VE Blue Solar 12V/24V 5A PWM PRO Solar Chg/Contrl SCC010005010

Victron Energy Blue Solar 12V/24V 5A PWM PRO Solar Charge Controller SCC010005010, BlueSolar PWM PRO 5A

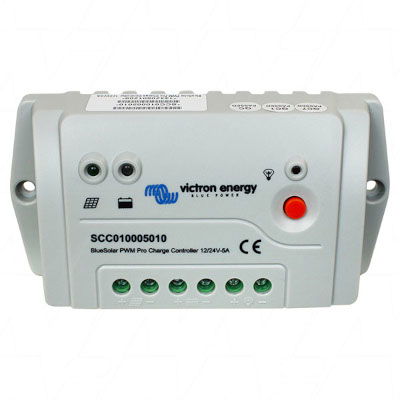

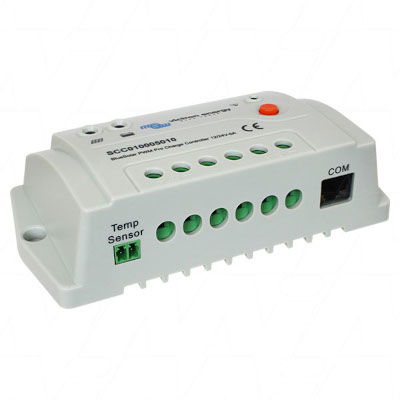

BlueSolar 12V/24V 5A PWM PRO Charge Controller

Programmable
The BlueSolar PWM-Pro series is ready for use with its default settings.
It also is fully programmable:

  • With help of a computer and software (available free of charge from the VE website)
  • With the dedicated BlueSolar Pro Remote Panel (see features below).

Features

  • Lighting control function, fully programmable.
  • Three stage battery charging (bulk, absorption, float), fully programmable.
  • Integrated battery monitor function (Remote Panel needed to display state of charge).
  • Load output with low voltage disconnect and manual control (default setting).
  • Optional external temperature sensor.
  • Load output protected against over load and short circuit.
  • Protected against reverse polarity connection of the solar array and/or battery.
  • Day/night timing options
mppt pwm whitepaper th500
Not sure what type of Solar Charge controller you need? Read more: Which solar charge controller: PWM or MPPT?		 mppt calculator thumb500

Access Victron Energy’s MPPT Sizing Calculator

Compatible Products:

LabelData
Compatible With:
Suitable For:

$51.30$44.61 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:SCC010005010
Technology:
Information Link: SCC010005010.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:5A
Voltage:45627V
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:130g
Length:3.7 cm
Width/Diameter:7 cm
Height:13.8 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:

No reviews to show
