VE 450V 200A CAN-bus S/Solar High Volt C/C MPPT RS SCC145120510

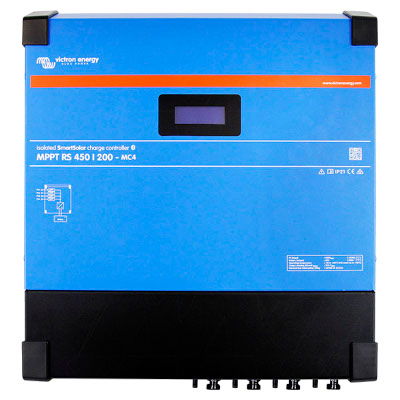

Victron Energy 450V 200A CAN-bus Smart Solar High Voltage Charge Controller MPPT RS Type SCC145120510, SmartSolar MPPT RS 450/200-MC4
Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller
The MPPT RS SmartSolar is a 48V Solar charge controller with up to 450VDC PV input and either 100A, or 200A output. It is used in on-grid and off-grid solar applications where maximum battery charging power is required.
Multiple independent MPPT tracking inputs
With multiple MPPT trackers, you can optimize your solar panel design for maximum performance for your specific location.
Isolated PV connections for additional safety
Full galvanic isolation between PV and battery connections provide additional overall system safety.
Wide MPPT voltage range
80 – 450 VDC PV operating range, with a 120VDC PV startup voltage.
Light weight, efficient and quiet
Thanks to high frequency technology and a new design this powerful charger weighs only 7.9 kg for the 100A model. In addition to this it has an excellent efficiency, low standby power, and a very quiet operation.
Display and Bluetooth
The display reads battery, and controller parameters. The parameters can be accessed with a smartphone or other Bluetooth enabled device. In addition, Bluetooth can be used to set up the system and to change settings with Victron Connect.
PV Isolation resistance monitoring for peace of mind at higher voltages
The MPPT RS continuously monitors the PV array and can detect if there are faults that reduce the isolation of the panels to unsafe levels.
VE.Can and VE.Direct port
For connection to a GX device for system monitoring, data logging, and remote firmware updates. VE.Can allows for up to 25 units to be connected together in parallel and synchronize their charging.
I/O Connections
Programmable Relay, temperature sensor, auxiliary, digital input and voltage sensor connections. The remote input can accept the Victron small BMS, and other BMS with allow-to-charge signal.
This package comes supplied with:
- 450V 200A Smart Solar MPPT RS High Voltage Solar Charge Controller
Isolated SmartSolar MPPT RS Manual
Related Products
Battery Management & Monitoring
Battery Management & Monitoring
Battery Management & Monitoring
Lithium Iron Phosphate LiFePO4 Chargers
Other Cable lengths available.
 Not sure what type of Solar Charge controller you need? Read more: Which solar charge controller: PWM or MPPT? |
|
 |
INSTALLATION TO NEW ZEALAND STANDARDS REQUIRED
|
 |
Victron Complex ProductPlease Note: Victron Energy has designated this product as a “Complex Product” requiring advanced technical expertise & trade related skills to install. The sale of this in-scope electrical equipment is subject to its installation being carried out by a suitably qualified installer in accordance with state laws and local regulations. |
 |
VictronConnect Compatible:
VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle, Connect directly to equipment using the VE.Direct to USB Interface (USB type-A) or VE Direct to Type C Interface (USB Type-C) cables. Find out more about VictronConnect here, or download the App via these links. For more information download the VictronConnect Manual. |
 |
 |
 |
 |
Compatible Products:
$3,675.58$3,196.16 Inc GST+ GST
