VE 12V/24V 20A Solar Chg/Contrl PWM SCC010020060

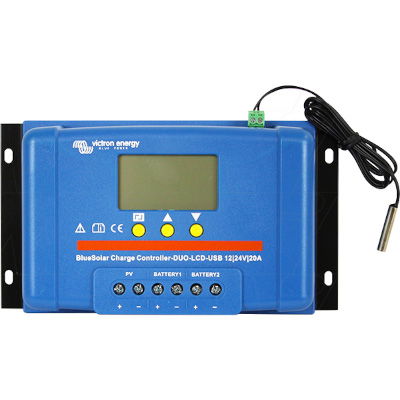

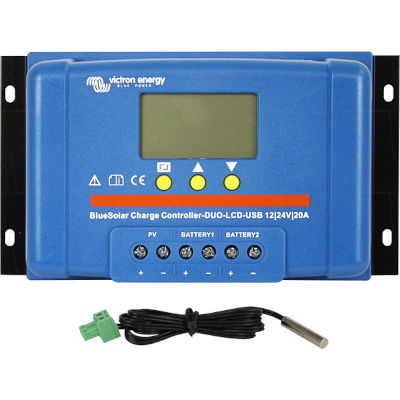

Victron Energy 12V/24V 20A Solar Charge Controller PWM Type SCC010020060, BlueSolar PWM DUO-LCD-USB

BlueSolar PWM-DUO-LCD-USB Charge Controller

12/24V 20A

Features

  • PWM controller
  • Charges two separate batteries. For example the starter battery and the service battery of a boat or mobile home
  • Programmable charge current ratio (standard setting: equal current to both batteries)
  • Charge voltage settings for three battery types (Gel, AGM and Flooded)
  • Internal temperature sensor and optional remote temperature sensor
  • Protected against over current
  • Protected against short circuit
  • Protected against reverse polarity connection of the solar panels and/or battery
  • LCD Display

BlueSolar DUO Charger Manual

mppt pwm whitepaper th500
Not sure what type of Solar Charge controller you need? Read more: Which solar charge controller: PWM or MPPT?		 mppt calculator thumb500

Access Victron Energy’s MPPT Sizing Calculator

Compatible Products:

LabelData
Compatible With:
Suitable For:

$117.27$101.97 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:SCC010020060
Technology:
Information Link: SCC010020060.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:20A
Voltage:45627V
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:180g
Length:7.6 cm
Width/Diameter:15.3 cm
Height:3.7 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
