VE 12V 14A Smart Solar Chg/Contrl MPPT + PAYGO SHS121409230

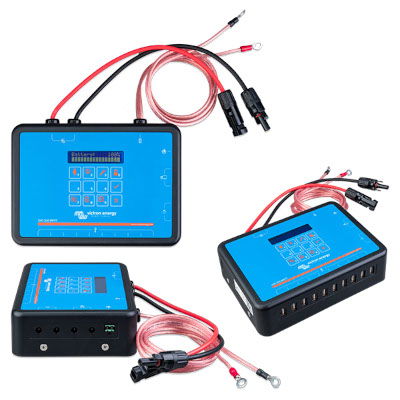

Victron Energy 12V 14A Smart Solar Charge Controller MPPT and Power Distribution System with 15 DC Load Outputs PAYGO SHS121409230, SHS 200 MPPT v3.0 MC4
Solar home system
The SHS 200 is a smart solar charge controller and power distribution system designed for off-grid electricity access. It is used with solar panels and a battery to power DC appliances (12V).
200W MPPT charge controller
Smart charge controller with four PV inputs of 50Wp. Maximum power point tracking (MPPT) will improve energy harvest by up to 30% compared to PWM charge controllers.
Smart battery management
Smart multi-stage charging and load disconnect to extend battery life. Internal temperature sensor (compensates charge voltage according to temperature). Optional battery enclosure to prevent user from tampering with battery terminals.
Fifteen DC load outputs
Compatible with a large range of accessories such as LED lighting, mobile phone charging, TVs, DC fridge, fans, or sound systems.
- 10 x USB ports (type A); Voltage: 4.75V-5.25V. Overall maximum of 10A across all ports. Individual maximum of 1.5A per port. Compliant with the USB Battery Charging 1.2 standard.
- Standard 12V DC outputs – Voltage: 10.5 to 15V (according to Lighting Global standard). Protection: software overcurrent protection and resettable fuse.
- Port 1 and 2 (from bottom): Current: Up to 3A; Connector: 5.5mm x 2.1mm barrel connector
- Port 3 and 4: Current: Up to 5A; Connector: 5.5mm x 2.1mm barrel connector
- Port 5: Current: Up to 10A; Connector: 5.08mm pin space pluggable screw terminal
PAYGo enabled
Low-cost and reliable offline Pay-as-you-go (PAYG) operation through keypad activation. Compatible with most mobile money carriers and various PAYG software platforms such as PaygOps, Angaza, Paygee.
*It is possible to use the SHS 200 without the PAYGo function. The SHS 200 will simply act as a MPPT with Multiple load outputs & does not require any token to be unlocked.
LCD screen
Display parameters such as usage statistics, battery state of charge and agent diagnostics. Easy navigation and adjustable languages (English, French, Swahili).
Customizable design
Different levels of personalization to distributor brands and last-mile operators.
Battery box
Optional anti-tampering box to prevent direct connection of loads on battery terminals.
Possible PV Panel Combinations
| 35 cell panels in parallel | ||||
|---|---|---|---|---|
| SHS 200 models | 20 to 50 Wp | 55 to 65 Wp | 70 to 100 Wp | 105 to 200 Wp |
| MC4 Connectors | 1 to 4 | 1 to 3 | 1 or 2 | 1 |
| * No series connection allowed | ||||
