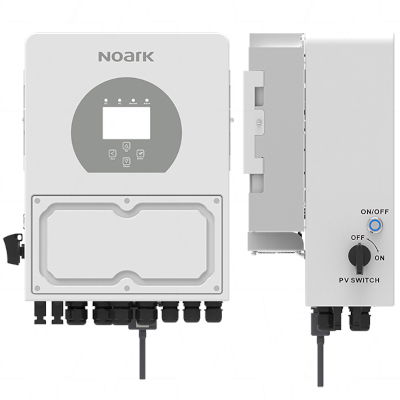

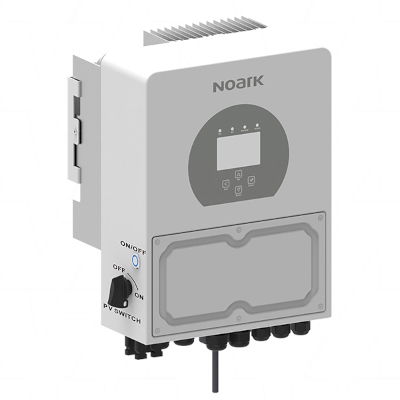

Noark EX9N-DH-6KS-AU Sgle Phase Hybrid Charger 48V 6000VA

Noark Single Phase Hybrid Inverter Charger 48V 6000VA 135A-40A MPPT 7800W Array, EX9N-DH-6KS-AU

6kVa Single Phase Hybrid Inverter Charger

The Noark SION range of single-phase hybrid inverters are CEC Approved (Multiple Mode Inverter – PV and Battery) & suitable for both on & off-grid applications.

This multifunctional Hybrid inverter, combines all the functions of an inverter, dual MPPT solar charge controllers (6500 W Array Size), & multi-chemistry battery charger which can all be monitored and controlled with the myNOARK software monitoring package.

Suitable for residential and light commercial use, the Noark range maximises the self-consumption rate of solar energy and increases your energy independence.

During the day, the PV system generates electricity which will be provided to the loads initially. Then, the excess energy will charge the battery via the Noark Single Phase Hybrid Inverter. Finally, the stored energy can be released when the loads require it. The battery can also be charged by a generator to ensure uninterrupted supply in the event of grid blackout. It is also equipped with RS485/CAN port for battery communication.

FEATURES:

• Pure Sine Wave inverter with Smart battery charger suitable for multiple Battery Brands and Chemistries
  • Overload/over temperature/short circuit protection.
  • RS485/CAN port for battery communication
• Dual MPPT
  • 2 strings for 1 MPP tracker, 1 string for 1 MPP tracker
  • Smart settable three stage MPPT charging for optimised battery performance
• IP65 Rated
• Max. 16 pcs parallel for on-grid and off-grid operation
• Compatible with mains voltage or generator power
  • AC input & Generator input port for Generator or String Inverter AC input
• AC couple to retro fit to existing solar system
• Auto restart while AC is recovering.
• Wireless configuration or via Colour touch LCD screen
  • Configurable 6 time periods for battery charging current/voltage based on applications.
  • Configurable AC/Solar/Generator Charger priority
  • Configurable battery charging current/voltage based on applications
• 10 Year Australian Backed Warranty (to 70% usable capacity)
• Australian Based technical support team

myNOARK 24/7 Monitoring Remote Upgrade & diagnosis Programmable applications include:

• Self-consumption and feed-in to the grid.
• Supply priority for battery or grid.
• Multiple operation modes: On grid (CEC Approved), off grid and UPS.
• limit function, prevent excess power overflow to the grid.
• Time of use function.
• Smart Load Function

Need help with your installation?

Click here to view the Installation Kit for this inverter. The Kit includes an assortment of Switchgear, an Energy meter & current transformer suitable for most system installations.

Review the Noark Quick Guide and Noark User manual and Noark Battery Compatibility List for more information.

	INSTALLATION TO NEW ZEALAND STANDARDS REQUIRED Key points about NZ regulations for hybrid inverter installations: Standard compliance: All hybrid inverters must comply with the AS/NZS 4777.1 standard for grid connection, ensuring safe and proper operation. Professional Installation: All installations, including hybrid inverters, must be carried out by a registered electrician and require a Certificate of Compliance. For more information go to https://www.standards.govt.nz/news-and-updates/solar-standards-update Solar panel standards: Alongside the inverter, solar panels used in a system must also comply with the AS/NZS 5033 standard. Local network requirements: While the AS/NZS 4777.1 sets general guidelines, local electricity distributors may have additional requirements for connecting a hybrid inverter to their network.

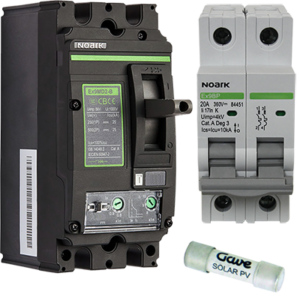

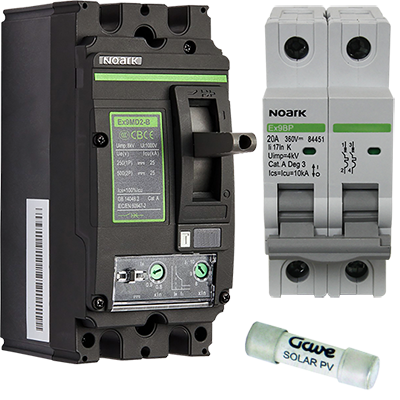

	Do you need circuit breakers? View the range of Moulded Case Circuit Breakers, Miniature Circuit Breakers and available Accessories to complete your system build…
	Noark’s Australian based support team is on hand to assist with all after-sales and technical support enquiries. Email: support@noark.au Mobile: +61 466 917 696
