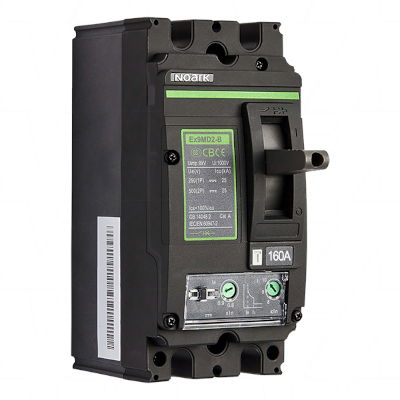

Noark N852899 MCCB EX9MD2B 160A 500V 2 Pole DC Circ Breaker

Noark N28901 MCCB EX9MD2B 160A 500V 2 Pole DC Circuit Breaker, N28901-2P-MCCB 160A/500VD

N852899 MCCB EX9MD2B 160A 500V 2 Pole DC Circuit Breaker.

Noark Moulded Case High Current DC Circuit Breakers (Non-polarised)

The Ex9MD range of moulded case circuit breakers (MCCB) provide high current breaking capabilities for DC circuits.

Used primarily on battery banks, these MCCBs provide a more serviceable approach to protection than standard NH fuse bases..

Specifications

Noark Series EX9MD2B TM DC160 2P
Poles 2 (250VDC per pole)
Current Rating (A) 160A
Voltage (Max.) 500VDC
Rated Insulation Voltage (VDC) Ui 1000VDC
Rated Breaking Capacity 25kA
Release Technology Thermo Magnetic
Frame Size 2
Frame Rating 250A
IP Rating (All sides/terminals) IP40 / 20
Standards IEC/EN/AS60947-2

Noark MCCB’s are adjustable:

mccb adj icon If the above product is out of stock, you can use the 180A rated N852900 model with the pot switch adjusted to 0.9 to still achieve a 162A rating.

Click here to see the Noark MCCB range with all adjustment ratings, or Click here to view the Noark MCCB Product Brochure

N20306 TCE21 3P8734 thumb View the suitable Terminal Protector/Shield



Compatible Products:

LabelData
Compatible With:
Suitable For:

$567.77$493.71 Inc GST+ GST

On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:N852899-2P-MCCB 160A/500VDC
Technology:
Information Link: N852899-2P-MCCB 160A/500VDC.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Noark Inverter
Original Brand:Noark
Size:160A
Voltage:500V
Capacity:160A
Wattage:
Cell Profile:
Termination:
Weight:
Length:
Width/Diameter:
Height:
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
