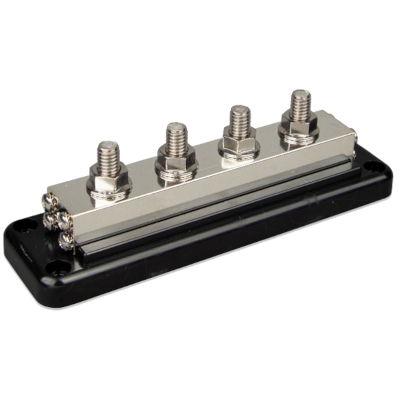

VE Busbar 600A 4P +cover

Victron Energy Busbar 600A 4P cover, VBB160040010

Busbar 600 A with cover

Note – Cover not pictured

Max. current 600A
Max. Voltage 70 VDC
Terminal diameter 9.53mm
Terminal height 19mm
Terminal material Stainless steel
Flange Nut material Stainless steel
Recommended torque 20 N·m / 180 lbf·inch
Screw Terminals diameter 4.2mm
Screw Terminals Stainless steel
Recommended torque 2 N·m / 17 lbf·inch
Busbar strip material Tin-plated copper (19 x 24mm)
Base material ABS, black, UL 94 V-0
Cover Material ABS, black, UL 94 V-2
Weight 750 g
Dimensions (hxwxd) 65 x 216 x 86 mm

BUSBAR  RANGE

Victron Energy BusBar

Compatible Products:

LabelData
Compatible With:
Suitable For:

$234.98$204.33 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:VBB160040010
Technology:
Information Link: VBB160040010.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:
Voltage:
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:750g
Length:8.6 cm
Width/Diameter:21.6 cm
Height:6.5 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:

No reviews to show
