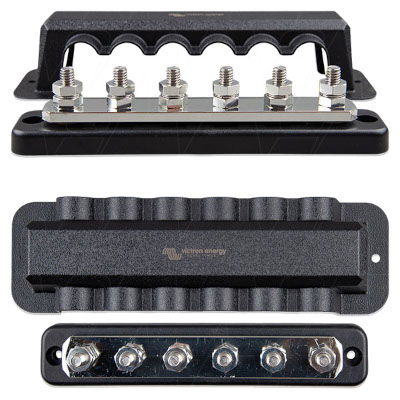

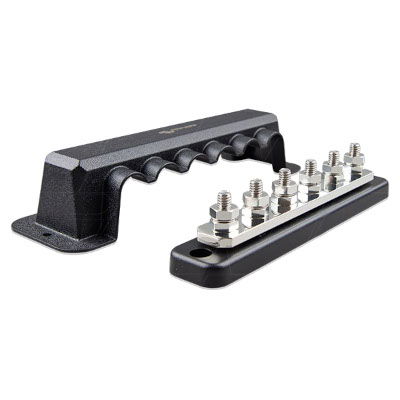

VE Busbar 250A 6P +cover

Victron Energy Busbar 250A 6P cover, VBB125060020

Busbar 250 A with cover

Max. current 250A
Max. Voltage 70 VDC
Terminal diameter 8.0mm
Terminal height 17mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 13 N·m / 110 lbf·inch
Busbar strip material Tin-plated copper (5 x 24mm)
Base material ABS, black, UL 94 V-0
Cover Material ABS, black, UL 94 V-2
Weight 450 g
Dimensions (hxwxd) 48 x 237 x 70 mm

BUSBAR  RANGE

Victron Energy BusBar

Compatible Products:

LabelData
Compatible With:
Suitable For:

$123.55$107.43 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:VBB125060020
Technology:
Information Link: VBB125060020.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:
Voltage:
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:450g
Length:7 cm
Width/Diameter:23.7 cm
Height:4.8 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
