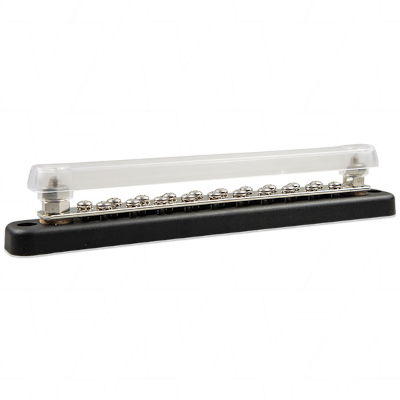

VE Busbar 150A 2P with 20 Screws+cover

Victron Energy Busbar 150A 2P with 20 Screws cover, VBB115022020

Busbar 150 A with 20 screws + cover

Max. current 150A
Max. Voltage 70 VDC
Terminal diameter 6.35mm
Terminal height 17mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 7 N·m / 60 lbf·inch
Busbar strip material Tin-plated copper (1.4 x 18 mm)
Base material ABS, black, UL 94 V-0
Cover Material Clear Polycarbonate, UL 94 HB
Weight 1000g
Dimensions (hxwxd) 45 x 232 x 32 mm

BUSBAR  RANGE

Victron Energy BusBar

Compatible Products:

LabelData
Compatible With:
Suitable For:

$57.12$49.67 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:VBB115022020
Technology:
Information Link: VBB115022020.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:
Voltage:
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:1000g
Length:3.2 cm
Width/Diameter:23.2 cm
Height:4.5 cm
