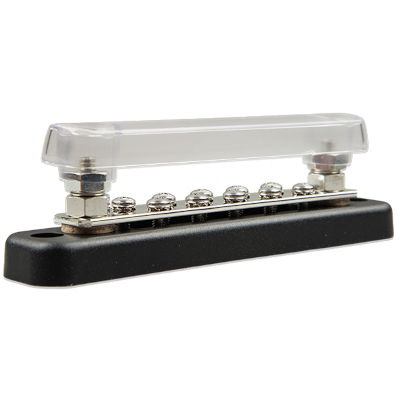

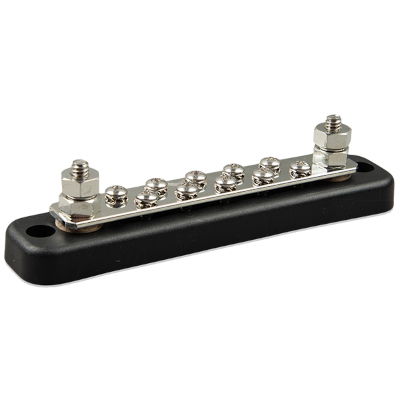

VE Busbar 150A 2P with 10 Screws +cover

Victron Energy Busbar 150A 2P with 10 Screws cover, VBB115021020

Busbar 150 A with 10 screws + cover

Max. current 150A
Max. Voltage 70 VDC
Terminal diameter 6.35mm
Terminal height 17mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 7 N·m / 60 lbf·inch
Busbar strip material Tin-plated copper (1.4 x 18 mm)
Base material ABS, black, UL 94 V-0
Cover Material Clear Polycarbonate, UL 94 HB
Weight 300g
Dimensions (hxwxd) 45 x 152.4 x 32 mm

BUSBAR  RANGE

Victron Energy BusBar

Compatible Products:

LabelData
Compatible With:
Suitable For:

$39.24$34.12 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:VBB115021020
Technology:
Information Link: VBB115021020.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:
Voltage:
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:300g
Length:3.2 cm
Width/Diameter:15.24 cm
Height:4.5 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:

No reviews to show
