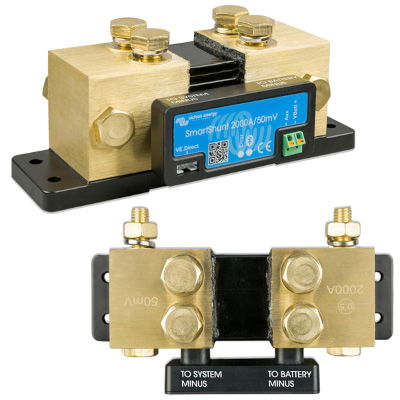

VE Smart Shunt 2000A/50mV Battery Monitor SHU050220050

Victron Energy Smart Shunt 2000A/50mV Battery Monitor, SHU050220050

The Smart Battery Shunt

The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display.

The SmartShunt connects via Bluetooth to the VictronConnect App on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more. Alternatively the SmartShunt can be connected and be read by a GX device, connected via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.

The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Differences compared to BMV712 Battery Monitor
– No programmable visual and audible alarm.
– No programmable relay.

Specifications:

• Supply voltage range: 6.5 – 70 VDC
• Current draw: < 1mA
• Input voltage range: auxiliary battery 6.5 – 70 VDC
• Battery capacity: (Ah) 1 – 9999 Ah
• Operating temperature range: -40 +50°C (-40 – 120°F)
• IP21 Rated
• Measures voltage of second battery, or temperature, or midpoint: Yes
• Temperature measurement range: -20 +50°C
• VE.Direct communication port: Yes

Manual – SmartShunt

VictronConnect Compatible: VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle, Connect directly to equipment using the VE.Direct to USB Interface (USB type-A) or VE Direct to Type C Interface (USB Type-C) cables. Find out more about VictronConnect here, or download the App via these links. For more information download the VictronConnect Manual.
