VE LYNX SMART BMS 1000 M10 for Lynx DC D/system LYN034170210

Victron Energy LYNX SMART BMS 1000 (M10) for use with the Lynx DC distribution system LYN034170210, LYNX SMART BMS 1000 M10

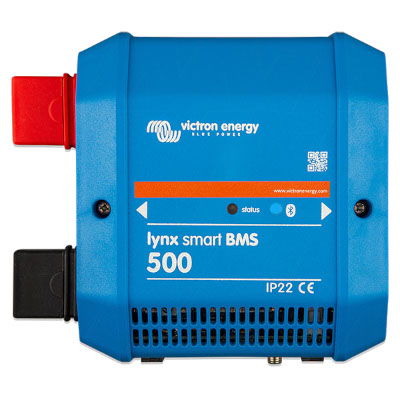

The Lynx Smart BMS (M10) is a dedicated Battery Management System for Victron Lithium Smart Batteries. It contains a positive and a negative busbar, a BMS, a contactor and a battery monitor. It is part of the Lynx Distribution system. There are multiple BMS-es available for our Smart Lithium series of batteries, and the Lynx Smart is the most feature rich and complete option. Its main features are:

  • Built-in 1000A contactor, used as a fall-back safety mechanism and also available as a remote controllable main systems switch
  • Has a status LED and a Bluetooth LED.
  • Battery monitor, indicating state of charge percentage and more data.
  • Pre-alarm signal: provide a warning before the system shuts down due to -for example- a low cell.
  • Bluetooth for use with our VictronConnect App, for setup and monitoring.
  • Can communicate via Bluetooth with the VictronConnect app and can communicate via VE.Can with an GX device, for example the Cerbo GX.

The Lynx Smart BMS is part of the modular Lynx Distribution system.

The Lynx Smart BMS and up to 4 connected Lynx Distributors can be monitored and setup with the VictronConnect App.

This is the M10 version of Lynx Smart LYN034160200 (M8).

This package comes supplied with:

  • LYNX Smart BMS 500
  • 2x VE.Can RJ45 terminators

Related Products: Victron Smart Lithium LFP-BMS Battery Range and

LYN020102000LYN020102000 2
Add to wishlist

Battery Management & Monitoring

VE Modular DC Busbar Connect to Lynx DC D/sys LYN020102000 WSL

$254.23$221.07 Inc GST+ GST
Add to cart
BPP900455050BPP900455050 2
Add to wishlist

Battery Management & Monitoring

VE 5 Inch Graphical User Interface (GUI) For Cerbo GX BPP900455050

$386.36$335.97 Inc GST+ GST
Add to cart
BPP010300100RBPP010300100R 2
Add to wishlist

Battery Management & Monitoring

VE Colour Control GX Systems Controller GUI BPP010300100R

$821.60$714.43 Inc GST+ GST
Add to cart
VictronConnect Compatible:

VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle, Connect directly to equipment using the VE.Direct to USB Interface (USB type-A) or VE Direct to Type C Interface (USB Type-C) cables.

Find out more about VictronConnect here, or download the App via these links. For more information download the VictronConnect Manual.
app_store_button Google Play Store
Apple Mac store Windows Download



Compatible Products:

LabelData
Compatible With:
Suitable For:

$2,310.94$2,009.51 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:LYN034170210
Technology:
Information Link: LYN034170210.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:
Voltage:
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:1900g
Length:8 cm
Width/Diameter:18 cm
Height:19 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
