VE 6.5-95VDC Prec Battery P/Monitor Displ BAM010700000R

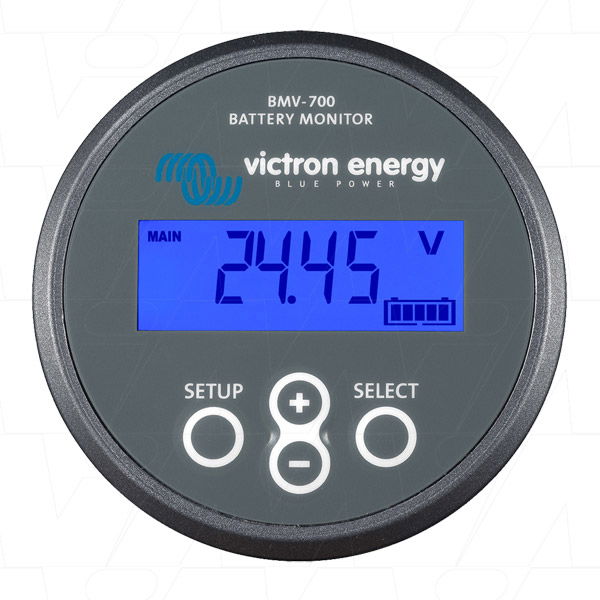

Victron Energy 6.5-95VDC Precision Battery Panel Monitor Display BAM010700000R, BMV-700R
Range – 6.5-95VDC
Battery ‘fuel gauge’, time-to-go indicator, and much more
The remaining battery capacity depends on the ampere-hours consumed, discharge current, temperature and the age of the battery. Complex software algorithms are needed to take all these variables into account.
Next to the basic display options, such as voltage, current and ampere-hours consumed, the BMV-700 series also displays state of charge, time to go, and power consumption in Watts.
Bluetooth Smart
Use the VE.Direct Bluetooth Smart Dongle to monitor your batteries on Apple or Android smartphones, tablets, macbooks and other devices.
Easy to install

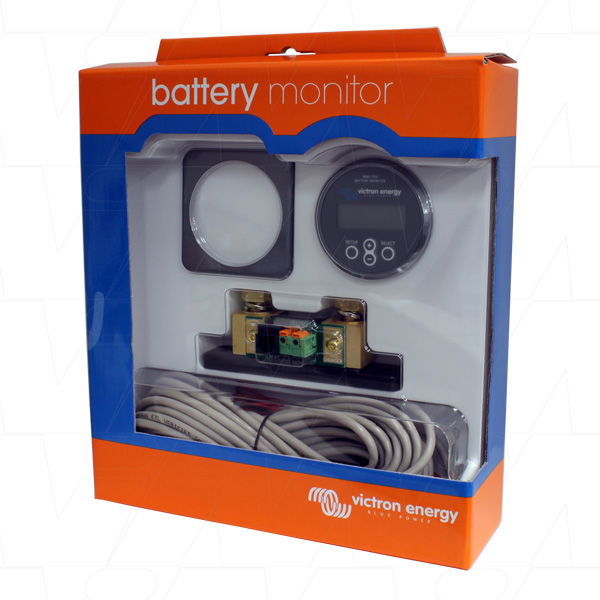

All electrical connections are to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable. Included: RJ 12 cable (10 m) and battery cable with fuse (2 m); no other components needed.
Also included are a separate front bezel for a square or round display appearance, a securing ring for the rear mounting and screws for the front mounting.
Easy to program (with your smartphone!)
A quick install menu and a detailed setup menu with scrolling texts assist the user when going through the various settings.
Alternatively, choose the fast and easy solution: download the smartphone app (Bluetooth Smart dongle needed)
Standard features
– Battery voltage, current, power, ampere-hours consumed and state of charge
– Remaining time at the current rate of discharge
– Programmable visual and audible alarm
– Programmable relay, to turn off non critical loads or to run a generator when needed
– 500 Amp quick connect shunt and connection kit
– Shunt selection capability up to 10.000 Amps
– VE.Direct communication port
– Stores a wide range of historical events, which can be used to evaluate usage patterns and battery health
– Wide input voltage range: 9,5 – 95V
– High current measurement resolution: 10 mA (0,01A)
– Low current consumption: 2,9Ah per month (4mA) @12V and 2,2Ah per month (3mA) @ 24V
Battery monitor BMV-700 & BMV-702 Installation Guide
VictronConnect BMV app Discovery Sheet
Made in Malaysia
Monitors For Suitable Enclosures
Battery Management & Monitoring
VE Wall Mount Enclosure Color Control GX & BMV or MPPT ASS050600000
Battery Management & Monitoring
VE Wall Mount Enclosure for BMV Srs or MPPT Control ASS050500000
 |
VictronConnect Compatible:
VictronConnect lets you get live status information and configure any Victron Energy products via either Bluetooth or direct cable connection. Connect to Bluetooth equipped products, or non-Bluetooth equipped products using VE.Direct Bluetooth Smart Dongle, Connect directly to equipment using the VE.Direct to USB Interface (USB type-A) or VE Direct to Type C Interface (USB Type-C) cables. Find out more about VictronConnect here, or download the App via these links. For more information download the VictronConnect Manual. |
 |
 |
 |
 |
