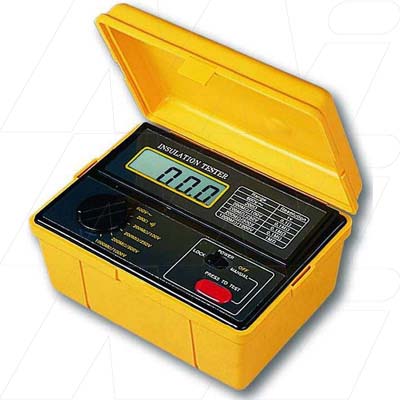

Lutron Insulation Tester DI6300A

Lutron Insulation Tester, DI6300A

Insulation measurement range:

200 Megohm (100V)

200 Megohm(250V)

200 Megohm(500V)

2000 Megohm(1000V)

ACV & OHM measurement.

Precision 200 ohm range easy for measuring low resistance such as motor windings, relay coils etc.

Insulation measurement with high drive current, short circuit current > 2.55 mA.

18mm (0.7″) large LCD display.

LSI-circuit provides high reliability and durability.

Overload protection for each range.

Automatic zero adjust & automatic circuit discharge.

Durable & portable housing case with the front protective cover.

DI6300A

Simpower has a wide range of Lutron products – search by type, or model, or filter by brand to find the one you are after. If you still can’t find it contact us..

Lutron

Compatible Products:

LabelData
Compatible With:
Suitable For:

$658.04$572.21 Inc GST+ GST

On Backorder

Delivery Estimate: within 1 to 2 weeks.
Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:DI6300A
Technology:
Information Link: DI6300A.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Lutron
Original Brand:lutron
Size:
Voltage:
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:90.9g
Length:16 cm
Width/Diameter:12 cm
Height:8.5 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
