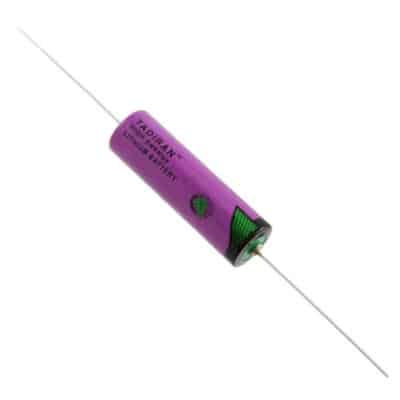

Tadiran TL-5903/P AA Lithium Thionyl Chloride Battery

3.6V AA Lithium Thionyl Chloride Cylindrical cell with pins 2.4Ah, Tadiran, TL-5903/P

The TL-5903/P is a 3.6V/2.4 Ah Non-Rechargeable (Primary) Battery, Lithium Thionyl Chloride (Li-SOCl2) AA With Pins

Technical Data:
(Typical values @ 25 ºC for batteries stored for one year or less)

• Nominal capacity 2.4 Ah
• Rated voltage 3.6 V
• Maximum recommended continuous current 100 mA
• Maximum pulse current capability 200 mA
• Weight 18 g (0.635 oz)
• Volume 8 cc
• Operating temperature range -55 ºC to 85 ºC
• Li metal content approx. 0.65 g
• U.L. Component Recognition, MH 12193

Available Termination Variants:

• Suffix- /S Standard
• Suffix- /T solder tabs
• Suffix- /P axial pins
• Suffix- /PT2 radial pins
• Suffix- /TP polarized tabs
• Suffix- /PT polarized tabs

Features:

• Fast voltage recovery after long term storage and/or usage
• High energy density
• High and stable operating voltage
• Low self discharge rate
• Bobbin construction
• Hermetic glass-to-metal-sealing
• Non-flammable electrolyte

Notes:

• Nominal Voltage for all batteries is 3.6V
• Temperature Range for all batteries is from -55°C to 85°C
• Custom Terminations Available Upon Request

PRIMARY CELL – DO NOT RECHARGE

Replaces previous model TL-2100/P
