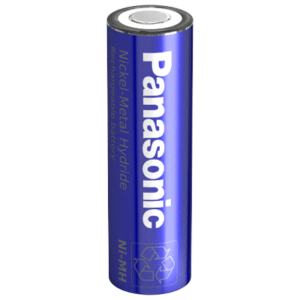

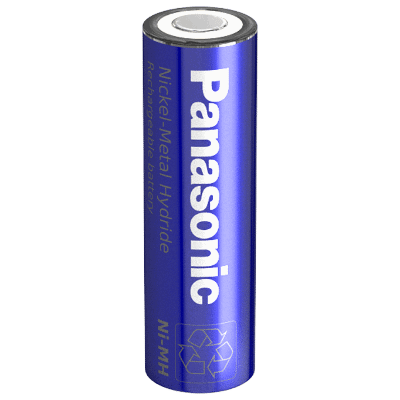

Panasonic BK-70AA Nickel Metal Hydride (NiMH) Rechargeable Battery

By panasonic

TBC

  • Product Model: BK-70AA
  • Chemistry: Nickel Metal Hydride (NiMH)
  • Type: N (standard type)
  • Voltage: 1.2V
  • Capacity: 700mAh
  • Size: AA
  • Information Link: BK-70AA.pdf

Delivery Time To Be Confirmed

Available on back-order


Send your price enquiry

Panasonic 1.2V 700mAh AA Size Nickel Metal Hydride (NiMH) Rechargeable Battery

Ni-MH battery technology is the successor to Ni-Cd (nickel cadmium) technology, used for rechargeable and portable devices. Panasonic offers standard batteries for common applications and a state-of-the-art high temperature battery family that delivers excellent reliability at high ambient temperatures and demanding conditions. Panasonic batteries are especially designed for solar-powered applications, automotive and power tools. Panasonic can help you find the right battery for your portable or stationary device. Panasonic is able to power your business in virtually all applications.

Ni-MH standard type (N) batteries – BK-70AAPanasonic Industry Logo

STANDARD TYPE Ni-MH battery technology is nowadays the Ni-Cd (Nickel-Cadmium) successor technology for rechargeable and portable devices. These batteries are ideal for less complex and cost sensitive applications. For example medical equipment and distance meters.

BK-70AA

BK-450A

Features of the BK-70AA

  • High quality and reliability
  • Good balance in terms of capacity and lifetime
  • Ideal for less complex and cost sensitive applications
  • Wide product range
  • Non-flammable, non-harmful material, safety battery

Download the Panasonic BK-70AA Data Sheet for more technical information

How to read the model numbers used for Panasonic Ni-MH batteries

The model numbers are normally indicated using two upper case English letters and three or more digits, as shown in the example. This numbering system gives the user information about the battery capacity, the dimensions and so on.

BK-70AAA

BK   – Nickel Metal Hydride battery
70    – multiply this number by 10 to obtain the rated capacity (some exceptions)
A   – diameter: AAA, AA, A

Panasonic offers a wide range of power solutions for portable and stationary applications. Their product range includes high reliable batteries such as Lithium-Ion, Lithium-Ion Pin-type, Lithium, Nickel-Metal Hydride, Nickel-Cadmium, Valve-Regulated-Lead-Acid (VRLA), Alkaline, and Zinc-Carbon. With this breadth and depth to the portfolio, they can power your business in virtually all applications.

The BK70AA cell is ideal for NiMH battery pack manufacturing. SIMPOWER offer a full turn key solution for battery packs and can manufacture in New Zealand using state of the art welders, please contact us to discuss your requirements further.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Electrical:

NameValue
Voltage:1.2V
Capacity:700mAh
Wattage:
Technology Charged:Secondary (Rechargable)
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:

Specifications:

LabelData
Technology:Nickel Metal Hydride (NiMH)
Weight:18g
Size:AA
Length:

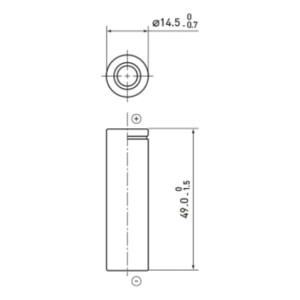

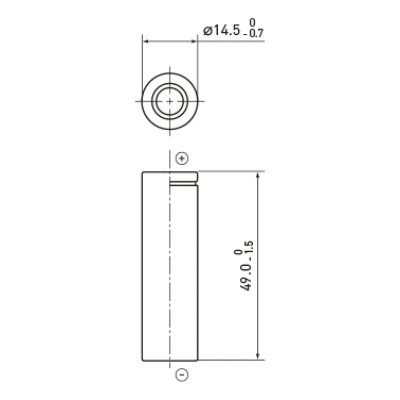

Width/Diameter:14.5 0/-0.7 cm
Height:49.0 0/-1.5 cm
Colour:
Termination:Flat Top
Cell Profile:Cylindrical

Compatibility:

LabelData
Compatible Parts:
Compatible Models:
  • BK-70AA
  • BK70AA
  • HHR-70AA
  • HHR70AA
