Panasonic BK-250SCH Nickel Metal Hydride (NiMH) Rechargeable Battery

TBC

Delivery Time To Be Confirmed

Available on back-order


Send your price enquiry

Table 1Table 2
Product Model:BK-250SCH
Product Name:Panasonic BK-250SCH Nickel Metal Hydride (NiMH) Rechargeable Battery
Manufactured By:Panasonic
Manufacturer/Brand:

panasonic

Type:PH (High rate discharge type)
Information Link: BK-250SCH.pdf

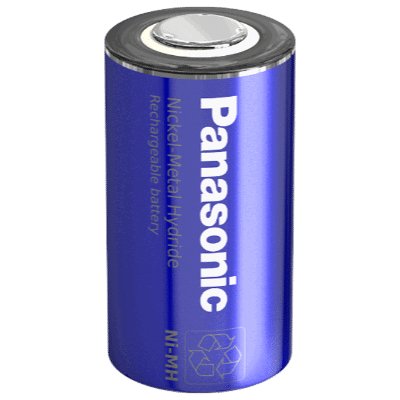

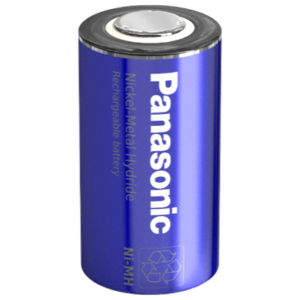

Panasonic BK-250SCH Sub C size Nickel Metal Hydride (NiMH) Rechargeable Battery

Ni-MH battery technology is the successor to Ni-Cd (nickel cadmium) technology, used for rechargeable and portable devices. Panasonic offers standard batteries for common applications and a state-of-the-art high temperature battery family that delivers excellent reliability at high ambient temperatures and demanding conditions. Panasonic batteries are especially designed for solar-powered applications, automotive and power tools. Panasonic can help you find the right battery for your portable or stationary device. Panasonic is able to power your business in virtually all applications.

Ni-MH Infrastructure Back up High-rate Discharge Type type (PH) batteries – BK250SCHPanasonic Industry Logo

HIGH RATE DISCHARGE & HIGH TEMPERATURE TYPE These state-of-the-art back-up batteries deliver excellent current discharge characteristics at high temperature (60°C). They are able to power applications such as back-up for UPS, POS systems, solar window shutters, ATMs, streetlights, road studs, etc



BK-250SCH

BK-450A

Features of the BK-250SCH

  • Long 4-6 year operation life
  • High-rate discharge (5 lT discharge/20°C
  • Ideal substitute for nickel-cadmium batteries.
  • Small size and light weight
  • Energy saving, long life



How to read the model numbers used for Panasonic Ni-MH batteries

The model numbers are normally indicated using two upper case English letters and three or more digits, as shown in the example. This numbering system gives the user information about the battery capacity, the dimensions and so on.

BK-250SCH

BK   – Nickel Metal Hydride battery
250    – multiply this number by 10 to obtain the rated capacity (some exceptions)
SC   – diameter: AAA, AA, A, SC – Sub C
H  type

Panasonic offers a wide range of power solutions for portable and stationary applications. Their product range includes high reliable batteries such as Lithium-Ion, Lithium-Ion Pin-type, Lithium, Nickel-Metal Hydride, Nickel-Cadmium, Valve-Regulated-Lead-Acid (VRLA), Alkaline, and Zinc-Carbon. With this breadth and depth to the portfolio, they can power your business in virtually all applications.

The BK250SCH cell is ideal for NiMH battery pack manufacturing. SIMPOWER offer a full turn key solution for battery packs and can manufacture in New Zealand using state of the art welders, please contact us to discuss your requirements further.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Electrical:

NameValue
Voltage:1.2V
Capacity:2500mAh
Wattage:
Technology Charged:Secondary (Rechargable)
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:

Specifications:

LabelData
Technology:Nickel Metal Hydride (NiMH)
Weight:53g
Size:SC
Length:

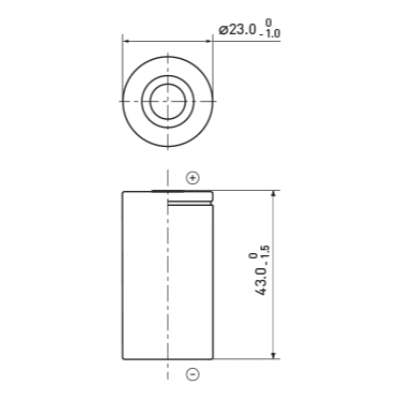

Width/Diameter:23.0 0/-1.0 cm
Height:43.0 0/-1.5 cm
Colour:
Termination:Flat Top
Cell Profile:Cylindrical

Compatibility:

LabelData
Compatible Parts:
Compatible Models:
  • BK-250SCH
  • BK250SCH
  • HHR-250SCH
  • HHR250SCH
