Panasonic BK-1100FHU Nickel Metal Hydride (NiMH) Rechargeable Battery

TBC

  • Product Model: BK-1100FHU
  • Chemistry: Nickel Metal Hydride (NiMH)
  • Type: U (long life type)
  • Voltage: 1.2V
  • Capacity: 11000mAh
  • Size: F
  • Information Link: BK-1100FHU.pdf

Delivery within 1-2 weeks

Available on back-order


Send your price enquiry

Description

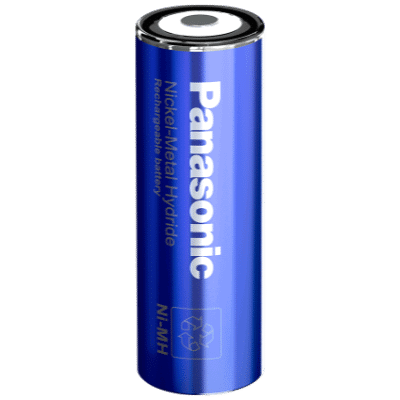

Panasonic BK-1100FHU F Size Nickel Metal Hydride (NiMH) Rechargeable Battery

Ni-MH battery technology is the successor to Ni-Cd (nickel cadmium) technology, used for rechargeable and portable devices. Panasonic offers standard batteries for common applications and a state-of-the-art high temperature battery family that delivers excellent reliability at high ambient temperatures and demanding conditions. Panasonic batteries are especially designed for solar-powered applications, automotive and power tools. Panasonic can help you find the right battery for your portable or stationary device. Panasonic is able to power your business in virtually all applications.

NI-MH High Temperature (U) batteries – BK-1100FHUPanasonic Industry Logo

These Longlife (U) type nickel metal hydride batteries are suitable for Infrastructure Backup applications such as: emergency lighting, guidance lights, LED lights, wireless base-stations, servers, elevators, ATMs, POS equipment, vending machines, medical equipment etc..

BK-450A

BK-1100FHU

Features of the BK-1100FHU

  • Long 8-10 years operation life (see specs)
  • Excellent recharging performance in high temperatures (up to 75°C)
  • High-rate discharge (3 to 5 lt discharge/20°C)
  • Great alternative to other nickel-cadmium batteries

How to read the model numbers used for Panasonic Ni-MH batteries

The model numbers are normally indicated using two upper case English letters and three or more digits, as shown in the example. This numbering system gives the user information about the battery capacity, the dimensions and so on.

Example for BK-1100FHU

BK   – Nickel Metal Hydride battery
1100    – multiply this number by 10 to obtain the rated capacity (some exceptions)
F   – diameter: AAA, AA, A, F
U      – type

Panasonic offers a wide range of power solutions for portable and stationary applications. Their product range includes high reliable batteries such as Lithium-Ion, Lithium-Ion Pin-type, Lithium, Nickel-Metal Hydride, Nickel-Cadmium, Valve-Regulated-Lead-Acid (VRLA), Alkaline, and Zinc-Carbon. With this breadth and depth to the portfolio, they can power your business in virtually all applications.

The BK1100FHU cell is ideal for NiMH battery pack manufacturing. SIMPOWER offer a full turn key solution for battery packs and can manufacture in New Zealand using state of the art welders, please contact us to discuss your requirements further.

Technical Information

Electrical:

NameValue
Voltage:1.2V
Capacity:11000mAh
Wattage:13.2Wh
Technology Charged:Secondary (Rechargeable)
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:

Specifications:

LabelData
Brand:Panasonic
Original Brand:

panasonic

Technology:Nickel Metal Hydride (NiMH)
Weight:250g
Size:F
Length:

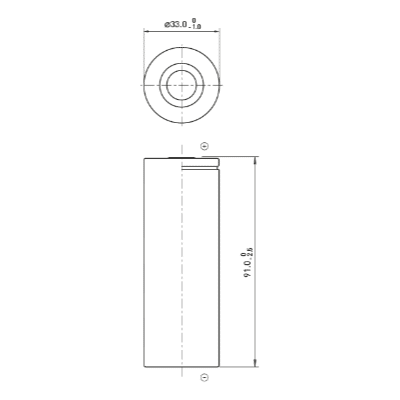

Width/Diameter:3.3 cm
Height:9.1 cm
Colour:
Termination:Flat Top
Cell Profile:
COMPATIBILITY

LabelData
Compatible With:
Suitable For:
