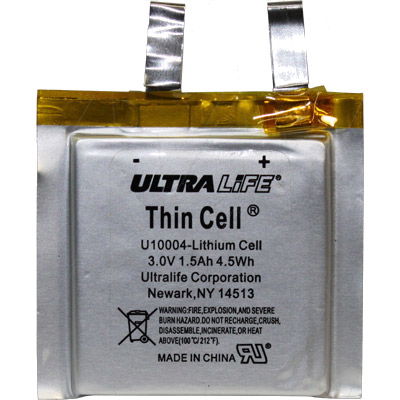

Ultralife CP403838 Pouch Lithium Battery
3V Lithium Manganese Dioxide Pouch 1500mAh, Ultralife, CP403838 (U10004)
3V Lithium Manganese Dioxide Pouch 1500mAh, Ultralife, CP403838 – previously known as U10004.
PRIMARY CELL – DO NOT RECHARGE
Applications: Portable Listening Device Security, “smart” security cards, flat-profile wireless asset tracking tags, electronic toll collection systems, postal tracking systems, electronic record tracking systems, wireless tracking of medical records.
Features and Benefits of Ultralife Thin Cell Lithium:
- ENERGY DENSITY: The energy density of ULTRALIFE Thin Cell is around 500Wh/l and 400Wh/Kg compared to just 300Wh/l and 260Wh/kg for the best lithium coin cells. This high volumetric & gravimetric energy density means that devices can be made smaller & lighter – the requisite for wearable technology.
- STORAGE: ULTRALIFE Thin Cell retains >98% of its capacity after one year storage at room temperature & does not suffer from the passivation associated with other Lithium chemistries. This means they are always ready to use regardless of how customers choose to store their devices.
- STABLE VOLTAGE: The Lithium Manganese Dioxide platform on which ULTRALIFE Thin Cell is built provides a stable voltage to power electronic devices. With an operating voltage between 3.3V and 1.5V, the ULTRALIFE Thin Cell is perfect for modern, low voltage electronic devices.
- SLIM: ULTRALIFE Thin Cell can be manufactured as thin as 0.4mm (0.016 inches) making them ideal for devices with a low profile such as ID tags & smart cards. Device designers can efficiently package the cells within their product as they do not expand or swell during storage or use.
- RATE CAPABLE: The use of low resistance current collectors allows ULTRALIFE Thin Cell to outperform coin cells at higher discharge rates – the ideal solution for applications which require high bursts of energy such as those with RF transmitters.
- WIDE TEMPERATURE: ULTRALIFE Thin Cell operates safely & effectively between -20°C & +60°C, making them suitable for a wide range of demanding applications. Their low temperature operation means they continue to operate when other batteries have frozen.
