Drypower 12LFP25TB 12.8V Lithium Iron Phosphate Battery
Drypower 12LFP25TB Lithium Iron Phosphate Battery

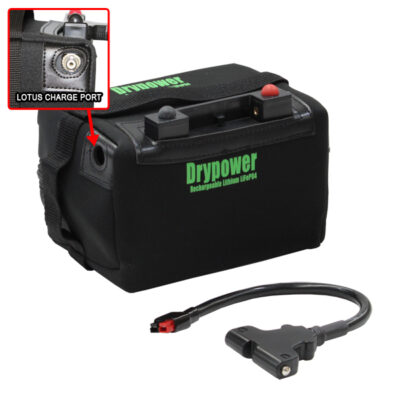

Drypower 12.8V 25.2Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Battery & carrier bag and Charger Kit for use with Golf Buggies.
4S7P-Cylindrical Construction
Specifications:
- Cycle life: >2000 cycles (100% DoD to 80% of original capacity) @ 25°C
- Max. continuous discharge current: 30A
- Charge voltage: 14.2V – 14.6V (14.2V recommended)
- Standard charge current: 5.0A
- Max. cont. charge current: 5.0A
- Operating Discharge temperature: -20°C to 60ºC
- Operating Charge temperature: 0°C to 45ºC
- Storage temperature: -20°C to 45ºC
- Operating Humidity (non-condensing): 5%-85%
- Series Connection: Nil
- Parallel Connection: Nil

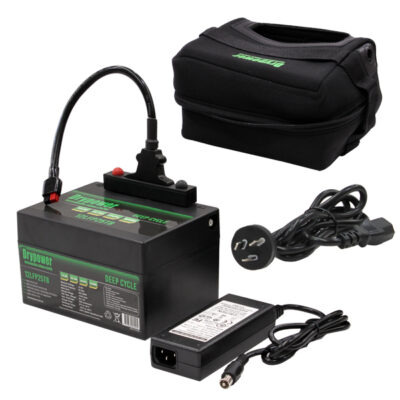

Kit comes with:
- 12V 25.2Ah LiFePO4 Battery
- Neoprene protective case
- T-Bar to Anderson PP Output lead
- Battery charger with Lotus Plug (which allows you to recharge the battery without disconnecting or removing the battery from the cart)
This battery is a direct replacement for the discontinued IFR12-220TB-Y Kit
 |
This product is certified to UN38.3
This battery has been tested & complies with the UN Model Regulation, Manual of Test & Criteria, Part III, Subsection 38.3
|
| FEATURES & BENEFITS | ||||
 |
Long Service Life >2000 cycles @100% DoD (25°C) to 80% of original capacity – longer service life than SLA to reduce maintenance costs. |
 |
High Energy Density – More Power p/kg Higher total system capacity and superior utilisation (full 100% DoD) to reduce overall system size and footprint. |
|
 |
Robust Enclosure Enclosed in IP5x (dust resistant) or IP6x (dust tight) case with closed loop terminals – suitable for harsh environments. |
 |
Stable Chemistry & Built-in Circuit Protection IEC & UN38.3 Safety Certified at cell level and integrated BMS protection to ensure safety and prevent damage. |
|
 |
Lightweight Approx. 1/2 the weight (or less) of equivalent in SLA means lower logistics costs and minimal OH&S concerns. |
 |
Superior Charge & Discharge Efficiency Faster charge/discharge rates (C/2 LiFePO4 vs C/20 SLA) for higher power usage and less downtime when charging. |
|
 |
Wide Operating Temperature Tolerance Suitable for use in a wider range of applications where ambient temperature is atypical: from -20°C up to 60°C. |
 |
Fully Recyclable Battery An environmentally friendly battery option, with no lead or calcium that can leak into the enviroment. |
|
  |
SHIPPING RESTRICTIONS APPLY Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.UN3480 FULLY DECLARED CLASS 9 DANGEROUS GOODS LITHIUM ION BATTERIES – Contains cells/batteries packed in accordance with Packing Instruction P903 from ADG 7.7 & IMDG Code 2020. |
