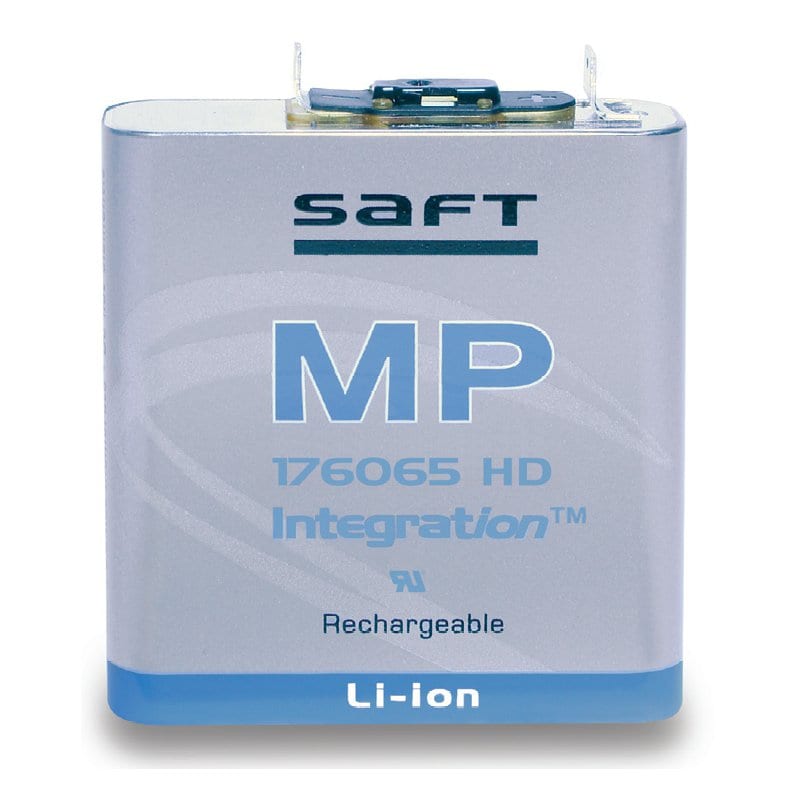

Saft MP 176065 Lithium Ion Rechargeable Battery

TBC

  • Product Model: MP 176065
  • Chemistry: Lithium Ion (LiIon)
  • Type: Prismatic
  • Voltage: 3.75V
  • Capacity: 6800mAh
  • Size:
  • Information Link: MP 176065.pdf

Delivery Time To Be Confirmed

Out of stock


Send your price enquiry

Description

3.75V MP 176065 HD Lithium Ion Battery, 3.6V, Saft, 1S 1P 176065 3.6A

3.75V Lithium Ion cell

This item is available by indent order and will require a separate quotation to give an accurate delivery time and price based on quantity. SHIPPING RESTRICTIONS APPLY

Due to IATA regulations, this item may only be shipped by road or sea freight. Information available upon request.

Saft MP prismatic rechargeable cells are based on lithium-ion chemistry. In addition to unrivalled nominal capacities, and long cycle-life, their most innovative feature is the capability to be charged and discharged over a wide temperature range, especially at low temperatures.

The MP cells feature various redundant safety features (electronic protection circuit, built-in circuit breaker in case of a charger fault, safety valve, shut down separator) which makes them ideal for demanding applications (military, medical, etc.).

Battery assemblies

To maximize performance and ensure total safety, Saft and its certified pack makers integrate MP cells into battery assemblies designed to the specific requirements of each application.

Construction features

stainless steel or aluminium container
hermetic and sturdy glass-to-metal sealing
built-in circuit breaker and safety vent
shutdown separator (operating at temperatures > 125°C)
available as individual batteries or multi-cell battery packs

Main applications

military radiocommunication
mobile asset tracking
small UPS
portable medical defibrillators
professional portable lighting (miners caps lamps, etc.)
portable gas detection
gas tank level monitoring
electric bikes and personal mobility
bar code reading systems
Robotics
AUV’s

Benefits

high operating voltage (4.2-2.5 V range)
high energy density (up to 385 Wh/l and 180 Wh/kg)
wide operating temperature range (-20°C to 60°C for charge, -50°C to 60°C for discharge)
unrivalled low temperature performance
high current capability (2C rate in continuous mode; up to 4C rate in pulses)
extended autonomy
long cycle-life (600 to 1000 cycles), depending on conditions
high current capability (2C rate in continuous mode; up to 4C rate in pulses)
easy state of charge detection based on open circuit voltage readings
light weight
easy integration into compact systems
Compliance with the European directive RoHS
excellent safety records

Maximum discharge current

Up to 2C continuous in the 0/ 60°C range. Up to C/5 in the -50/0°C range.
Up to 4C in pulse conditions (consult Saft for specific conditions) Standard electronic protection circuits with a single cell are rated to 5A or 10A (other ratings on request).

Charge method

Constant current / Constant voltage (CCCV)

Charging Current

Up to 1 C-rate

Operating temperature ranges

Charge : -20 / 60°C
Discharge : -50 / 60°C

Transport assignment

MP 144350, MP 174565 Integration & MP 176065 HD Integration are Non-restricted for transport as long as the battery pack nominal energy do not exceed 100 Wh
MP 176065 Integration Single cell and multi cell batteries are restricted (Class 9 assignment)With over 10,000 products to choose from ranging from battery packs, individual batteries and cells, to chargers, power supplies, analysers, Lutron meters and test equipment they have the widest range of battery products available in New Zealand. If they don’t have it they can find it for you.

Contact us to discuss your requirements further.

Technical Information

Electrical:

NameValue
Voltage:3.75V
Capacity:6800mAh
Wattage:25.5Wh
Technology Charged:Secondary (Rechargeable)
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:

Specifications:

LabelData
Brand:Saft
Original Brand:

saft

Technology:Lithium Ion (LiIon)
Weight:132g
Size:
Length:6.835 cm
Width/Diameter:1.98 cm
Height:6 cm
Colour:
Termination:
Cell Profile:
COMPATIBILITY

LabelData
Compatible With:
Suitable For:
