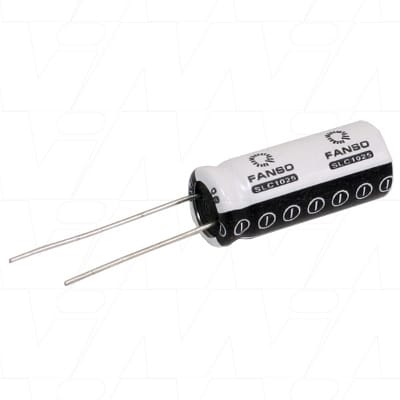

Fanso SLC1025 Lithium Ion Capacitor
Fanso SLC1025 3.65-3.95V 40mAh Lithium Ion (LiIon) Battery EACH.
Fanso SLC1025 Super Lithium-ion Capacitor (SLC) delivers 1000mA pulse discharge current (max).
Designed for use in parallel connection with the Fanso range of Lithium Thionyl Chloride batteries, the Fanso super capacitor SLC series delivers high pulse discharge current in a variety of applications.
Features:
* High pulse capability.
* No voltage delay.
* Low self discharge rate.
8 Wide temperature range: -40ºC ~ 85ºC.
SLC1025 Specifications:
* Max. continuous discharge current: 1000mA
* Max. continuous pulse current: 2000mA
* Max. charge voltage: 3.95V
* Max. charge current: 50mA
* Operating temperature: -40ºC ~ 85ºC
* Storage temperature: -40ºC ~ 60ºC
* ESR (AC): 100mΩ
* Self discharge at room temp: 0.25µA
Suitable for applications including:
* Data collection and recording
* Emergency rescue system
* GPS tracking system
* Radio frequency identification (RFID)
* Remote wireless transmission system
* Communications equipment
* Intelligent transportation and cargo tracking
