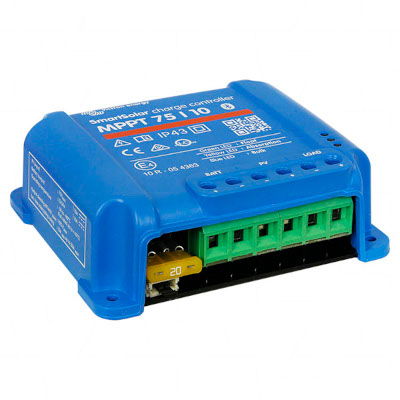

Victron Energy SmartSolar MPPT 75/10 Charger SCC075010060R

Victron Energy SmartSolar MPPT 75/10 Charger SCC075010060R

SmartSolar 12V/24V 10A Solar Charge Controller MPPT Type SCC075010060R

SmartSolar MPPT 75/10 solar charge controller from Victron Energy with:

• 12V/24V auto select battery voltage
• 10A rated charge current
• 145W @12V or 290W @24V maximum PV power
• Automatic load disconnect
• 98% peak efficiency
• Reverse polarity (fuse) protection, output short circuit protection, over temperature protection

Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.

VE.Direct
For a wired data connection to a Color Control panel, PC or other devices

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a pre-set voltage. Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
The load output is short circuit proof.

Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months.
The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.

Programmable battery charge algorithm
See the software section on our website for details

Day/night timing and light dimming option
See the software section on our website for details

Programming, real-time data and history display options
– Modern Apple and Android smartphones, tablets, macbooks and other devices: see the VE.Direct Bluetooth Smart dongle and the MPPT app discovery sheet for screenshots.
– ColorControl panel

Fully discharged battery recovery function will initiate charging even if the battery has been discharged to zero volts. Will reconnect to a fully discharged Li-ion battery with integrated disconnect function.

This package comes supplied with:

• 12V/24V 10A Solar Charge Controller
• Preset charge profiles for:
  • SLA
  • GEL
  • LITHIUM

Related Products

• • MPPT Control
  • Colour Control GX

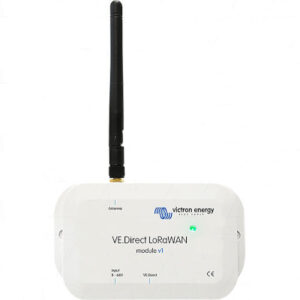

  • VE.Direct LoRaWAN AU915-928
  • VE.Direct Bluetooth Smart Dongle
  • DIN Rail Mount<

(other cable lengths also available).

Additional information

Not sure what type of Solar Charge controller you need? Click on the helpful guide from Victron Energy called:

Which solar charge controller PWN or MPPT?

For more information on Victron Engery MPPT Sizing calculator go to their website Victron Energy.
