Delta-Q DQIC1200-24/50CAN Charger
Delta-Q DQIC1200-24/50CAN Charger
941-0008 24V 50A Delta-Q IC1200 Series IP66 SLA & Lithium Battery Charger with CANBus.
This Delta-Q IC1200 Series is a 24V 50A (1200W) Industrial battery charger suitable for charging lead acid & lithium batteries.
CAN Bus model for simple system integration
Designed for Reliability:
Delta-Q IC Series chargers are designed to provide automotive-level product reliability and validated for a long service life in difficult conditions. All Delta-Q chargers are built in a world-class facility for manufacturing high-reliability solutions
Easy to integrate:
CAN bus communication enables a link between the IC1200 and other components. This can provide for safe lithium-ion battery charging, and machine diagnostics and servicing information. IC Series chargers store charge cycle data, which is accessible using their built-in USB host port. The port can also support software and charge profile updates.
Global flexibility:
The IC1200 Charger has a broad AC input range of 85-270V, enabling global use on any single-phase electrical grid. Wide regulatory approvals allow the IC1200’s use in electric vehicles and industrial equipment sold internationally. All IC Series chargers have customizable AC and DC cabling, providing simpler SKU management and tailoring charger integration to customer demand.
Battery charging performance:
In its extensive battery lab, Delta-Q has developed more than 200 charge profiles for lead acid (wet/flooded, AGM, gel) and lithium batteries. New profiles can be developed for manufacturers as part of the design-in process. The company has a proven track record of balancing charging time, performance and longevity, and application needs.
Software and accessories:
Through software and accessories, original equipment manufacturers (OEMs) can customize their Delta-Q battery charging solutions for better application fit and additional features for the customer.
Delta-Q offers software to support charger programming, battery troubleshooting and charge cycle data analysis. Chargers can be customized with different AC and DC cabling, remote LED signaling, connectors, temperature sensors, and carrying handles. Speak to our in-house engineers to find out more.
For more information review the Delta-Q IC Series Battery Chargers Installation and Design Guide.
Specifications:
| DC Output | 24VDC |
|---|---|
| Max DC Output Voltage | 36V |
| Max DC Output Current | 50A |
| Max DC Output Power | 1200W |
| Deep Discharge Min. Voltage | 1.2V |
| Maximum C3 interlock signal current | 10A |
| Reverse Polarity | Electronic protection w auto-reset |
| Short Circuit | Electronic current limit |
| AC Input Range | 85 – 270VAC |
| Nominal AC Input Voltage | 100-240VAC |
| Nominal AC Input Frequency | 50 / 60Hz |
| Max. AC Input Current | 14.5A |
| Efficiency | 92% at full load 240VAC 48VDC |
| Ingress Rating | IP66 (NEMA4) |
| Operating Temperature | -40°C to +65°C (Derated >40°C) |

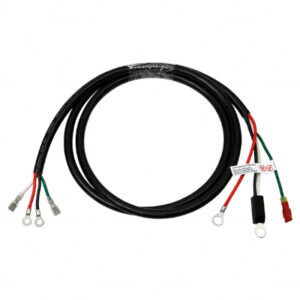

Charger requires the following cabling:Â *sold separately
Main Features:
- Multi Colour LED Indicator for battery source
- Numeric display for charge profile & alarm/fault codes
- Preloaded with 16 lead-acid & 2 Lithium charge profiles
- Custom profiles available
- Auto-recharge for low voltage in maintenance mode
- CANbus communication for machine integration or lithium BMS
Compatible Products:
$1,794.38$1,560.33 Inc GST+ GST
