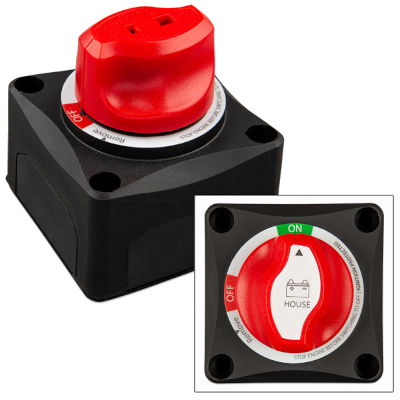

VE Battery Isolation Switch ON/OFF 275A VBS127010010

Victron Energy Battery isolation switch ON/OFF 275A VBS127010010

Battery Switch 270A

Max. cont. current 275A
One Minute Rating 450A
Cranking Rating 1200A
Voltage Rating 48V
Terminal material Tin-plated copper
Hex nut material Tin-plated copper
Terminal Diameter 9.53mm
Recommended torque 8 N·m / 70 lbf·inch
Base material Glass fibre reinforced nylon
Weight 200 g
Dimensions (hxwxd) 69 x 69 x 73 mm
Mounting Surface or Rear Panel mount
Ignition Protection ISO8846 / SAE J1171

BUSBAR  RANGE

Battery Switch – manual

Victron Energy BusBar

Compatible Products:

LabelData
Compatible With:
Suitable For:

$62.94$54.73 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:VBS127010010
Technology:
Information Link: VBS127010010.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:275A
Voltage:48V
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:200g
Length:7.3 cm
Width/Diameter:6.9 cm
Height:6.9 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
