VE MultiPlus-II Invt & SLA/LiFePO4 Chgr 48V 35A-32A w GX PMP482306000
Victron Energy MultiPlus-II Inverter & SLA/LiFePO4 Charger 48V 3000VA 35A – 32A Transfer Switch with inbuilt GX PMP482306000, VEICMPII-48/3000/35-32GX

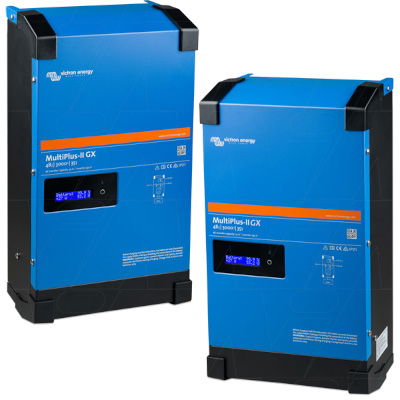

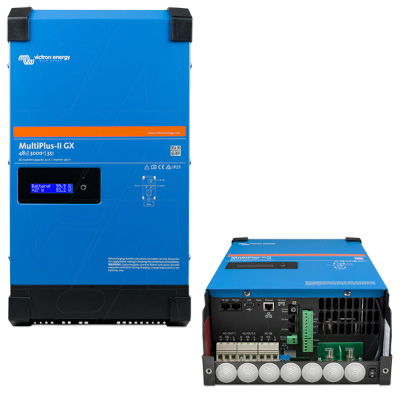

MultiPlus-II GX
An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.
A MultiPlus-II with LCD and GX functionality
The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.
Display & WI-FI
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.
GX device
The integrated GX device includes:
- A VE.Can interface. This can be used to connect to Victron VE.Can devices (eg VE.Can MPPTs), or the port can be reconfigured via the Remote Console for use with a compatible CAN-bus Li-ion Battery.
- A USB port.
- A Ethernet port.
- A VE.Direct port.
Applications
The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote onitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.
Parallel and three phase operation
Only one GX unit is needed in case of Parallel and three phase operation.
 |
IMPORTANT: This product requires a software update to be installed for CEC Compliance. Contact Simpower for more information on this.
This product appears on the Clean Energy Council list of compliant inverters & power conversion equipment (PCE) |
This package comes supplied with:
- 48V 3000VA 35A Inverter Charger
MultiPlus-II 12, 24, 48 3000/5000/8000/10000 Manual
