VE MultiPlus-II Invt & SLA/LiFePO4 Chgr 48V 35A-32A PMP482305010

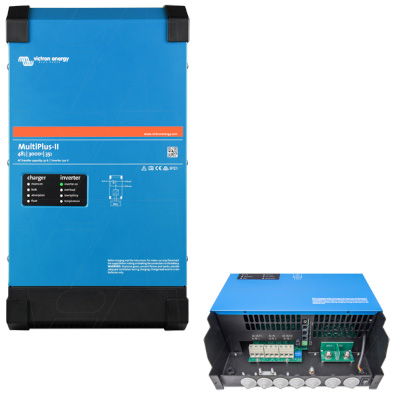

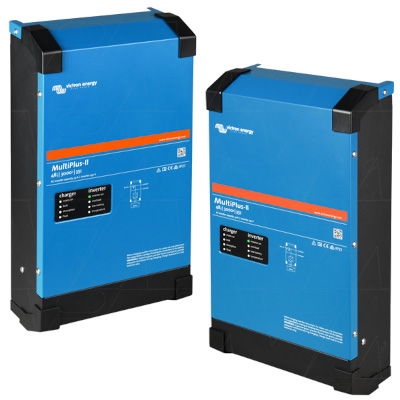

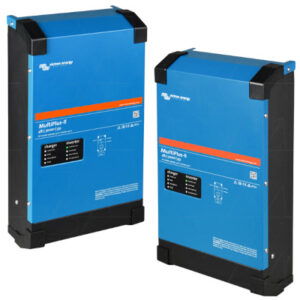

Victron Energy MultiPlus-II Inverter & SLA/LiFePO4 Charger 48V 3000VA 35A – 32A Transfer Switch PMP482305010, VEICMPII-48/3000/35-32
MultiPlus-II Inverter/Charger: The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid. It has all the features of the MultiPlus, plus an external current transformer option to implement PowerControl and PowerAssist and to optimise self-consumption with external current sensing (max. 32A). It also has all the features of the MultiGrid with built-in anti-islanding.
A MultiPlus, plus ESS (Energy Storage System) functionality
The MultiPlus-II combines the functions of the MultiPlus and the MultiGrid.It has all the features of the MultiPlus, plus an external current sensor option which extends the PowerControl and PowerAssist function to 32A. It also has all the features of the MultiGrid with built-in anti-islanding and an increasingly long list of country approvals.
PowerControl and PowerAssist – Boosting the capacity of grid or generator power
A maximum generator or grid current can be set. The Multi will then take account of other AC loads and use whatever is extra for battery charging, thus preventing the generator or grid from being overloaded (PowerControl function).
PowerAssist takes the principle of PowerControl to a further dimension. Where peak power is so often required only for a limited period, the Multi will compensate insufficient generator, shore or grid power with power from the battery. When the load reduces, the spare power is used to recharge the battery.
ESS: Energy Storage Systems
The MultiPlus can be used in off grid as well as grid connected PV and other alternative energy systems. Several system configurations are possible, for more detailed information see the ESS Design and configuration manual.
On-site monitoring and control
Several options are available: Battery Monitor, Digital Multi Control Panel, Color Control Panel, Bluetooth (Venus GX or Color Control panel needed), laptop or computer.
Remote configuring and monitoring
Install a Venus GX or a Color Control Panel to connect to the internet. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge. When connected to the Ethernet, systems can be accessed remotely and settings can be changed.
Replaces superceded models PMP482304000 & PMP482305000
 |
IMPORTANT: This product requires a software update to be installed for CEC Compliance. Contact Simpower for more information on this.
This product appears on the Clean Energy Council list of compliant inverters & power conversion equipment (PCE) |
This package comes supplied with:
- 48V 3000VA 35A Inverter Charger
MultiPlus-II 12, 24, 48 3000/5000/8000/10000 Manual
Related Products
Battery Management & Monitoring
Battery Management & Monitoring
Battery Management & Monitoring
 |
INSTALLATION TO NEW ZEALAND STANDARDS REQUIRED
|
Compatible Products:
$1,025.17$891.45 Inc GST+ GST
