VE MultiPlus-II GX Invt & SLA/LiFePO4 Chgr 48V 70A-50A PMP482506000

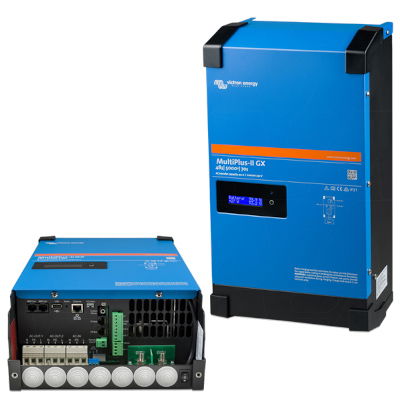

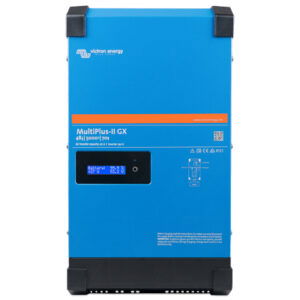

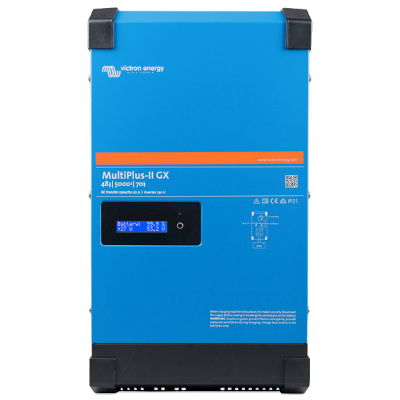

Victron Energy MultiPlus-II GX Inverter & SLA/LiFePO4 Charger 48V 5000VA 70A – 50A TRANSFER SWITCH PMP482506000, VEICMPII-48/5000/70-50GX

An Inverter/Charger with device networking built-in, the MultiPlus-II GX communicates with a solar charger, batteries, and other devices to control a grid-connected, off-grid, or remote power installation. Capable of parallel operation for increased power output, or battery charge-rates, the MultiPlus-II GX can also be configured for three-phase supply. A host of advanced features – such as uninterrupted power supply, setting load limits, and supplementing limited grid-power availability with battery power – can all be controlled straight from your phone or smart device. Remote monitoring is also possible.

A MultiPlus-II with LCD and GX functionality
The MultiPlus-II GX integrates a MultiPlus-II inverter/charger and a GX device with a 2 x 16 character display.

Display and Wi-Fi
The display reads battery, inverter and solar charge controller parameters.
The same parameters can be accessed with a smartphone or other Wi-Fi enabled device.

GX device
The integrated GX device includes:

  • A BMS-Can interface. This can be used to connect to a compatible CAN-bus managed battery. Note that this not a VE.Can compatible port.
  • A USB port.
  • A Ethernet port.
  • A VE.Direct port.

Applications
The MultiPlus-II GX is intended for applications where additional interfacing with other products and/or remote onitoring is required, such as on-grid or off-grid energy storage systems and certain mobile applications.

Parallel and three phase operation
Only one GX unit is needed in case of Parallel and three phase operation.

new cec button2 IMPORTANT: This product requires a software update to be installed for CEC Compliance. Contact Simpower for more information on this.

This product appears on the Clean Energy Council list of compliant inverters & power conversion equipment (PCE)

This package comes supplied with:

  • 48V 5000VA 370A Inverter Charger

MultiPlus-II 12, 24, 48 3000/5000/8000/10000 Manual

Related Products

BPP900400100BPP900400100 2
Add to wishlist

Battery Management & Monitoring

VE Venus-GX Systems Controller & Monitor BPP900400100

$465.54$404.82 Inc GST+ GST
Add to cart
ASS030140000ASS030140000
Add to wishlist

Battery Management & Monitoring

VE VEBus to USB Connection Interface to PC ASS030140000

$137.53$119.59 Inc GST+ GST
Add to cart
BPP010300100RBPP010300100R 2
Add to wishlist

Battery Management & Monitoring

VE Colour Control GX Systems Controller GUI BPP010300100R

$821.60$714.43 Inc GST+ GST
Add to cart

Multiplus II Intro

AM Solar Tutorial

ddiy icon

INSTALLATION TO NEW ZEALAND STANDARDS REQUIRED

  • This product requires installation to the appropriate New Zealand Standards
  • Various NZ legislations require a Licensed Electrician to install this item – Please consult the NZ Government websites for more information.

Compatible Products:

LabelData
Compatible With:
Suitable For:

$1,848.84$1,607.69 Inc GST+ GST

Available On Backorder

Delivery Estimate: within 1 to 2 weeks. Information on Back-Order cut offs and deliveries.

Specifications:

NameValue
Product Model:PMP482506000
Technology:Lithium Iron Phosphate / Lead Acid (LiFePO4/SLA)
Information Link: PMP482506000.pdf
Rechargeable / Non-Rechargeable:
Hazardous & DG Class:
(NB IATA Regs may apply)
Manufactured By:Victron Energy
Original Brand:Victron Energy
Size:70A
Voltage:48V
Capacity:
Wattage:
Cell Profile:
Termination:
Weight:30000g
Length:14.8 cm
Width/Diameter:32.3 cm
Height:56.5 cm
Colour:
Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:
