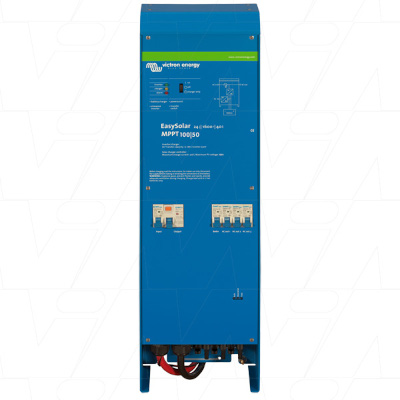

EasySolar Inverter & SLA/LiFePO4 Chgr 24V 1600VA 40A CEP241621010
Victron Energy EasySolar Inverter & SLA/LiFePO4 Charger 24V 1600VA 40A CEP241621010, VEICES-24/1600/40
All-in-one solar power solution
The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure.
The product is easy to install, with a minimum of wiring.
The solar charge controller: Blue Solar MPPT 100/50
Up to three strings of PV panels can be connected to three sets of MC4 (PV-ST01) PV connectors.
The inverter/charger: MultiPlus Compact 12/1600/70 or 24/1600/40
The MPPT charge controller and the MultiPlus Compact inverter/charger share the DC battery cables (included). The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
AC distribution
The AC distribution consists of a RCD (30 mA/16 A) and four AC outputs protected by two 10A and two 16A circuit breakers.
One 16A output is controlled by the AC input: it will switch on only when AC is available.
PowerAssist
Unique PowerAssist technology protects the utility or generator supply from being overloaded by adding extra inverter power when needed.
Unique solar application software
Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.
This package comes supplied with:
- 24V 1600VA 40A Inverter Charger
Victron Energy Easy Solar Manual
Related Products
Battery Management & Monitoring

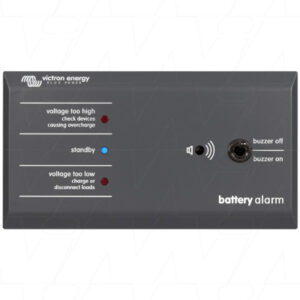

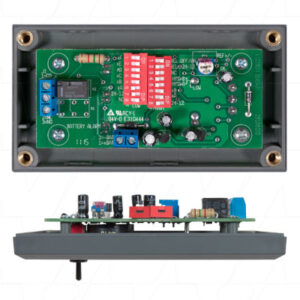

VE Low Cost Alarm Panel Monitoring Battery Bank BPA000100010R
