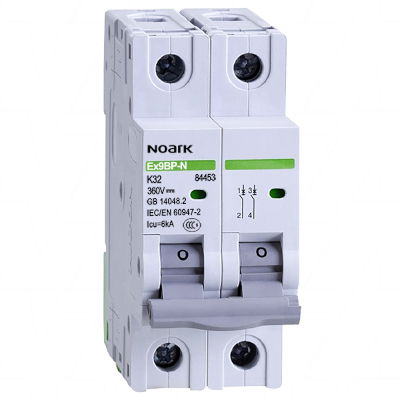

Noark N84453 MCB EX9BP-N 32A 360V 2 Pole DC Circuit Breaker
Noark N84453 MCB EX9BP-N 32A 360V 2 Pole DC Circuit Breaker, N84453-2P-MCB 32A/360VDC
Noark Miniature 360V DC Circuit Breakers (Non-polarised)
Noark DC miniature circuit breakers are non-polarised and suitable for short-circuit and overload protection of general direct current applications up to 32A, in solar, automation, control, telecommunications, and many other DC circuit applications.
Specifications
| Article Code | 10000150 |
|---|---|
| Noark Series | Ex9BP-N2P K 32A 360VDC |
| Poles | 2 (180VDC per pole) |
| Current Rating (A) | 32A |
| Voltage (Max.) | 360VDC |
| Voltage (Min.) | 12VDC |
| Rated Breaking Capacity | 6kA |
| Curve Type | K |
| Rated Insulation Voltage (VDC) Ui | 1000VDC |
| Terminal Capacity | 35 mm² |
| Terminal Torque (Nm) | 2-3.5Nm |
| Mounting | 35mm Din Rail |
| IP Rating (All sides/terminals) | IP40 / 20 |
| Standards | IEC/EN/AS60947-2, SAA101238EA |
For more information review Miniature Circuit Breakers Ex9BN as well as the Noark EXB Manual.
Information on suitable enclosures to come.
