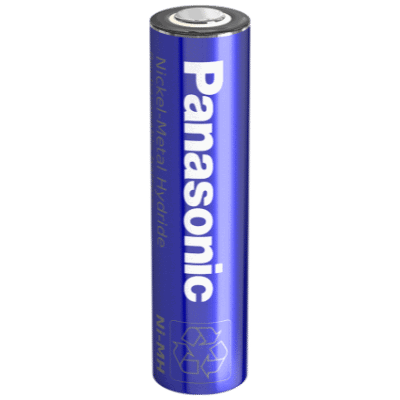

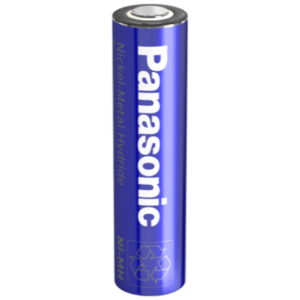

Panasonic BK-330APH Nickel Metal Hydride (NiMH) Rechargeable Battery

TBC

Delivery Time To Be Confirmed

Available on back-order


Send your price enquiry

Table 1Table 2
Product Model:BK-330APH
Product Name:Panasonic BK-330APH Nickel Metal Hydride (NiMH) Rechargeable Battery
Manufactured By:Panasonic
Manufacturer/Brand:

panasonic

Type:PH (High rate discharge type)
Information Link:

Panasonic BK-330APH Lfat/A size Nickel Metal Hydride (NiMH) Rechargeable Battery

Ni-MH battery technology is the successor to Ni-Cd (nickel cadmium) technology, used for rechargeable and portable devices. Panasonic offers standard batteries for common applications and a state-of-the-art high temperature battery family that delivers excellent reliability at high ambient temperatures and demanding conditions. Panasonic batteries are especially designed for solar-powered applications, automotive and power tools. Panasonic can help you find the right battery for your portable or stationary device. Panasonic is able to power your business in virtually all applications.

Ni-MH Infrastructure Back up High-rate Discharge Type type (PH) batteries – BK330APH

Panasonic Industry Logo

HIGH RATE DISCHARGE & HIGH TEMPERATURE TYPE These state-of-the-art back-up batteries deliver excellent current discharge characteristics at high temperature (60°C). They are able to power applications such as back-up for Elevators, UPS, POS systems, solar window shutters, ATMs, streetlights, road studs, etc.

BK-330APH



BK-450A

Features of the BK-330APH

  • Long 4-6 year operation life
  • High-rate discharge (5 lT discharge/20°C
  • Ideal substitute for nickel-cadmium batteries.
  • Small size and light weight
  • Energy saving, long life

How to read the model numbers used for Panasonic Ni-MH batteries

The model numbers are normally indicated using two upper case English letters and three or more digits, as shown in the example. This numbering system gives the user information about the battery capacity, the dimensions and so on.

BK-330APH

BK   – Nickel Metal Hydride battery
330    – multiply this number by 10 to obtain the rated capacity (some exceptions)
A   – diameter: AAA, AA, A
PH – Type

Panasonic offers a wide range of power solutions for portable and stationary applications. Their product range includes high reliable batteries such as Lithium-Ion, Lithium-Ion Pin-type, Lithium, Nickel-Metal Hydride, Nickel-Cadmium, Valve-Regulated-Lead-Acid (VRLA), Alkaline, and Zinc-Carbon. With this breadth and depth to the portfolio, they can power your business in virtually all applications.

The BK330APH cell is ideal for NiMH battery pack manufacturing. SIMPOWER offer a full turn key solution for battery packs and can manufacture in New Zealand using state of the art welders, please contact us to discuss your requirements further.

Reviews

There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.

Electrical:

NameValue
Voltage:1.2V
Capacity:3200mAh
Wattage:
Technology Charged:Secondary (Rechargable)
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:

Specifications:

LabelData
Technology:Nickel Metal Hydride (NiMH)
Weight:59g
Size:Lfat/A
Length:

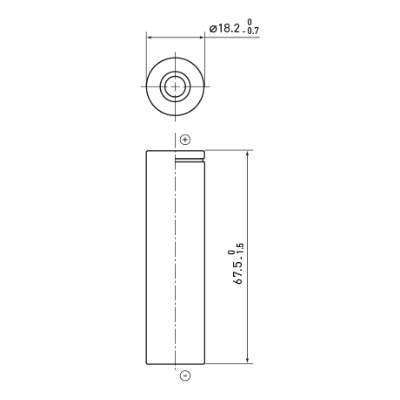

Width/Diameter:18.2 0/-0.7 cm
Height:67.5 0/-1.5 cm
Colour:
Termination:PH (High rate discharge type)
Cell Profile:Cylindrical

Compatibility:

LabelData
Compatible Parts:
Compatible Models:
  • BK-330APH
  • BK330APH
  • HHR-330APH
  • HHR330APH
