Victron Energy BAT512120610 200Ah Lithium Iron Phosphate Battery

$2,237.98

  • Product Model: BAT512120610
  • Chemistry: Lithium Iron Phosphate (LiFePO4)
  • Type:
  • Voltage: 12.8V
  • Capacity: 200000mAh
  • Size:
  • Information Link: BAT512120610.pdf

Delivery within 1-2 weeks

Available on back-order

Description

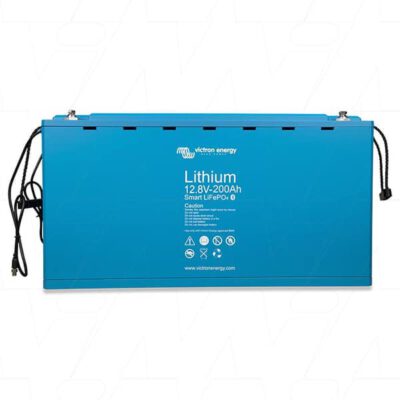

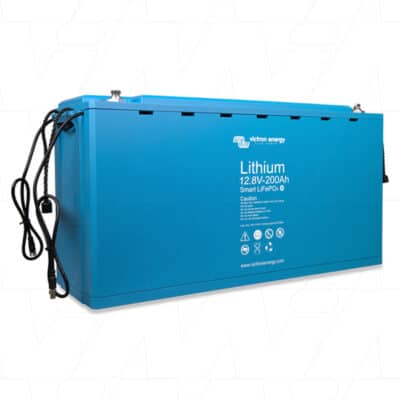

Victron Energy BAT512120610 12.8V 200Ah Lithium Iron Phosphate (LiFePO4) Rechargeable Lithium Smart Battery with Integrated Cell Balancing and Cell Monitoring, LFP-BMS12.8/200-A

Important Information:

Victron Energy LFP batteries have integrated cell balancing and cell monitoring.Up to five batteries can be paralleled and up to four batteries can be series connected, so that a 48V battery bank of up to 500Ah can be assembled.

The cell balancing/monitoring cables can be daisy-chained and must be connected to a Battery Management System (BMS) with two M8 circular connector cord sets.

The most Popular BMS is the VE. Bus BMS This BMS can be used to control VE bus devices such as the Victron Inverter Charger range.

If not connecting to a Victron inverter charger use the small BMS

*See product manual for more information

High capacity 12.8V 300Ah Lithium Iron Phosphate (LiFePO4) smart battery module with built-in Bluetooth

With bluetooth capabilities, users can monitor their Victron LiFePO4 battery through the Victron Connect app (available for iOS and Android).

For Optimum efficiency, always update to the latest firmware using the Victron Connect app prior to installation.

Specifications:

  • Cycle life: 2500 cycles (80% DoD), 3000 cycles (70% DoD), 5000 cycles (50% DoD)
  • Max. continuous discharge current: 600A
  • Recommended continuous discharge current: ≤300A
  • End of discharge voltage: 11V
  • Charge voltage: 14.0V – 14.4V (14.2V recommended)
  • Float voltage: 13.5V
  • Max. charge current: 750A
  • Recommended charge current: ≤150A
  • Operating temperature: -20°C to 50ºC
  • Storage temperature: -45°C to 70ºC
  • Humidity (non-condensing): max. 95%
  • Protection class: IP22

Consider implementing Victron Energy’s range of Lithium Iron Phosphate modules in high energy demand applications:

  • More RUGGED compared to lead acid batteries.LiFePO4 batteries do not need to be fully charged all the time. A partial charge may even slightly improve service life. In addition, LiFePO4 batteries have a wider operating temperature range, excellent cycling performance, lower internal resistance and higher rate of efficiency than lead acid batteries.

Lead acid batteries will fail prematurely due to sulfation if the battery is rarely, or never at all, fully charged or if the battery is stored for long periods partially or fully discharged.

  • Higher ENERGY EFFICIENCY than lead acid batteries.Round trip energy efficiency (discharge from 100% to 0% and back to 100% charged) of LiFePO4 batteries is 92% compared to lead acid batteries at around 80%. In off-grid applications like solar and/or wind, better energy efficiency means less energy loss.
  • SMALLER and LIGHTER than lead acid batteries.

LiFePO4 batteries are up to 70% smaller and 70% lighter than equivalent lead acid batteries.

SHIPPING RESTRICTIONS APPLY
Due to IATA and individual airline regulations, this item may only be shipped by surface (road/sea) freight.

VictronConnect Compatible:

VictronConnect lets you get live status information and configure any Victron products which either have Bluetooth built in, or are connected to a VE.Direct Bluetooth Smart Dongle, or a VE.Direct to USB Interface

Find out more about VictronConnect here, or download the App via these links.

app_store_button Google Play Store
Apple Mac store Windows Download



Technical Information

Electrical:

NameValue
Voltage:12.8V
Capacity:200000mAh
Wattage:2560Wh
Technology Charged:Secondary (Rechargeable)
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:

Specifications:

LabelData
Brand:Victron Energy
Original Brand:

victron-energy

Technology:Lithium Iron Phosphate (LiFePO4)
Weight:22000g
Size:
Length:15.2 cm
Width/Diameter:32.1 cm
Height:23.7 cm
Colour:
Termination:M8
Cell Profile:
COMPATIBILITY

LabelData
Compatible With:
Suitable For:
