ZTS MBT-LA2 2V, 4V, 6V, 8V & 12V Lead Acid Battery Tester, MBT-LA2


Delivery Time To Be Confirmed

Out of stock - available on backorder

Table 1Table 2
Product Model:MBT-LA2
Product Name:ZTS MBT-LA2 2V, 4V, 6V, 8V & 12V Lead Acid Battery Tester, MBT-LA2
Manufactured By:ZTS


Information Link: MBT-LA2.pdf

ZTS MBT-LA2 2V, 4V, 6V, 8V & 12V Lead Acid Battery Tester, MBT-LA2

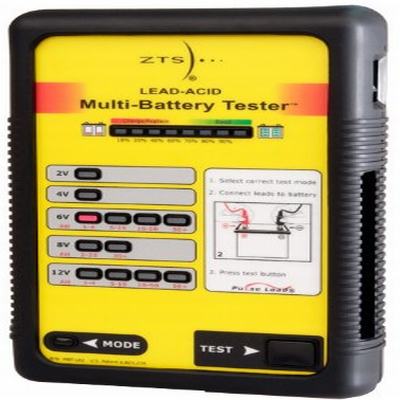

The ZTS Lead Acid Multi-Battery Tester (MBT-LA2) provides a comprehensive means of testing the state of charge and battery condition for 2-volt, 4-volt, 6-volt, 8-volt, and 12-volt lead acid battery types (SLA, AGM, Gel, Wet).

Lightweight, compact design make it an ideal tool for anyone working with lead acid batteries.
This microprocessor-controlled instrument tests popular batteries using a patented, high accuracy pulse load test. After a fully automatic test cycle, percentage of remaining battery capacity is indicated on the LED bar display. Test results are easy to understand.

An integrated cooling fan dissipates heat from testing, and the circuit is protected against over-voltage.

Rugged NBR rubber sleeve protects against impact. includes 1200mm removeable test leads with solid copper clamps. The tester is packaged with the accessory kit which includes a hanging strap and magnet for hands-free operation, and a protective soft case. Requires 4AA batteries (not included).

* View the datasheet below for more details.

* Computes State of Charge for lead acid battery types [SLA, Gel, Flooded]

* Test battery condition – quickly and easily identifies weak or failing batteries

* Patented high accuracy Pulse Load Test – battery safe, non-invasive

* Test 2-volt, 4-volt, 6-volt, 8-volt, 12-volt

* Testing capability (modes):

40 Years Experience
SIMPOWER is at the forefront of battery technology. With 40 years of expertise and experience in research contracts, design and developing of both new technology cells and specialist industrial battery applications.

In other words from concept of cells to production manufacturing, SIMPOWER knows how to achieve customer satisfaction.

Own Manufacturing
SIMPOWER has its own manufacturing plant with state of the art welding and manufacturing equipment servicing all parts of New Zealand from the southern to northern end of the country with a quick efficient service. They offer free technical advice* on battery selection and pack design and have extensive technical advice.

SIMPOWER offers a unique facility and service of repacking battery packs for equipment which is no longer produced or perhaps difficult to source. Where possible they replace existing cells with increased capacity batteries to improved customers run time and service life if possible.

* Advice is free for the first 60 minutes, or part thereof. All subsequent advise will be billed at the SIMPOWER hourly rate or an agreed amount, subject to subsequent sales.

SIMPOWER has extensive knowledge and expertise of cells and battery pack build and is an exclusive distributor in NZ for SAFT, a world leader and innovator in cell technologies, as well as an approved distributor for PANASONIC, SENTRY, EVE, ARTS Energy and a supplier of FDK, DURACELL, Sonnenschein among others. SIMPOWER carries a wide range of many brands in stock and has the ability to source all leading brands from the global market place.

Contact us to discuss your requirements further.


There are no reviews yet.

Only logged in customers who have purchased this product may leave a review.


Technology Charged:
Standard Charge Current:
Standard Current Charge Time:
Quick Charge Current:


Length:23.5 cm
Width/Diameter:15.8 cm
Height:5.1 cm
Cell Profile:


Compatible Parts:
Compatible Models:ZTS MBT-LA2
